Xeltek SuperPro IS01 Universal ISP Programmer

SuperPro IS01 In-System (ISP) Programmer

• High programming speed selectable: Adapt to cable length and load feature for target board.
• Supports online (USB2.0 high-speed) and offline mode simultaneously.
• Supports all common ISP protocol (i.e. I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232).
• Contains Automatic Test Equipment (ATE) interface for automated operation.
• Built-in overcurrent protection function.
• Field proven for R&D, mass production and individual in-system programming projects.
• The programmer operates in either PC hosted mode or stand-alone mode.
  • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection for device programming.

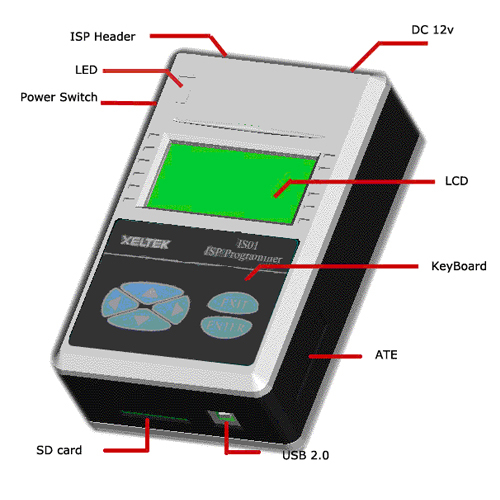

  • Under stand-alone mode, the user controls the programmer via a build-in LCD screen and keypad.
  • A SD card stores project files.

• Compatible with Windows XP / Vista / 7 / 8 (32/64 bit)
• Includes the following advanced and powerful software functions:
  • The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
  • Password protection provides security for project files and production volume control.
  • The Batch command combines device operations like program, verify, security into a single command at any sequence.
  • Serial number generators are available as standard or customer-specific functions.
  • A Log file provides quality tracking.

• Provides VDD (0.5A) output line and VPP(0.2A).
• ESD protection - I/O level is adjusted via SuperProIS01 software (1.5V ~ 4V).
• Online software operates the programmer and manages offline project via USB2.0.
• When operated offline, operations are shown through the built-in LCD screen, keypad and LED status indicator.

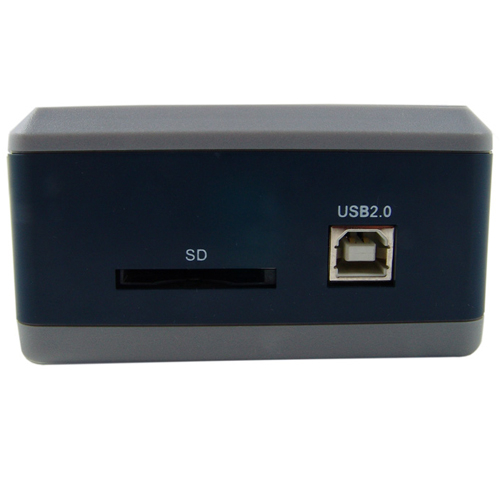

• Project files could be stored using a removable SD card (Max. 4GB).

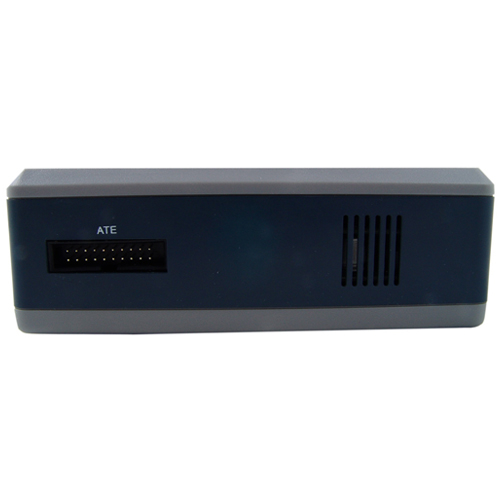

• The ATE interface allows operating and controlling the programmer through external signals. There are six project selection lines (SEL0 - SEL5), two command input lines (START and STOP) and three status output lines (PASS, FAIL and BUSY). External signals are isolated from the system from optocouplers.

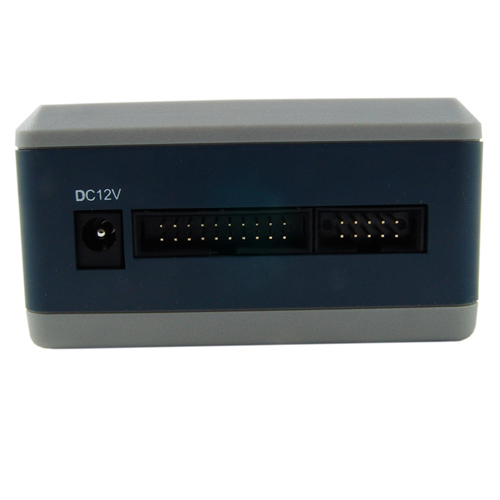

• 12V DC / 2A system external power input.

Items Included

• One SuperProIS01 programmer
• One ISP cable, type A (supports interfaces other than CAN and RS232)
• One connecting cable for USB interface
• One power adapter (output DC 12V)
• Installation software, one CD-ROM disc.
• One user registration form.
