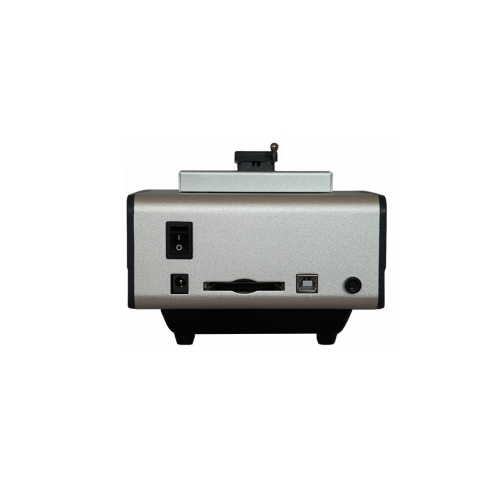

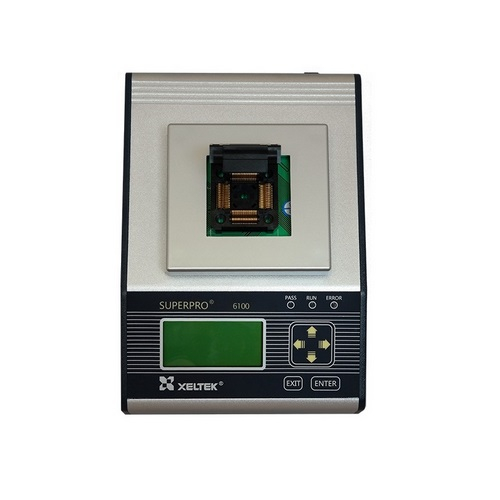

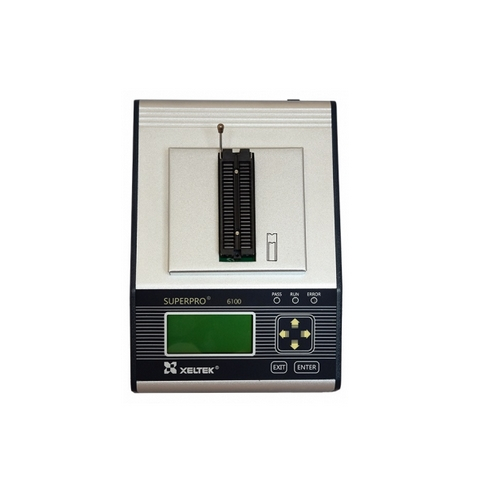

Xeltek SP6100N SuperPro Interfaced Stand Alone Universal Programmer

Xeltek, SP6100N, SuperPro USB Interfaced Ultra-Fast 144-Pin Stand Alone Universal Programmer

Note: Socket adapters sold separately.

SP6100N Includes Only:

• Programmer SP6100N
• USB connection cable
• Power supply unit
• Software installation CD
• User's Guide
• Registration form

Features:

• Ultra Fast Programming Speed - SuperPro 6100N is designed with high programming speed in mind. Semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Special design was made to eliminate overshoot and ground bounce. Algorithms are performed with state machine architecture constructed with FPGA to achieve a ultra-high programming speed.
• Largest Device Support - SuperPro 6100N currently supports more than 100,000 devices, which is the largest device library in the programming industry.
• Auto Function - The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.
• Project Files - The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.
• Production Mode - Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.
• Intellectual Property Protection - Password settings in both PC and stand-alone mode.
• Auto Increment of Serial Numbers - Auto-generation of electronic serial numbers is on SuperPro 6100n. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode.
• Auto Recognition of File Types - Support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear and segmented) Hex, Motorola S, Tektronix (linear and segmented), JEDEC, POF, etc.
• Factory Mode - This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode.The administrator can set a password to prevent unauthorized access to the system.
• Production Statistics - A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.

Application and target customers:

• Programming houses
• Electronic repair
• Car repair shops
• Forensic and data recovery companies
• Medical devices

SuperPro 6100n is a cost-effective, reliable, and high-speed universal chip programmer. It is designed to communicate using USB 2.0 port for development requirement and can also work in standalone mode (without connecting to a PC) for production requirement. It has the largest device support count in the programming industry with 144 pin drivers to support high pin count chips.
