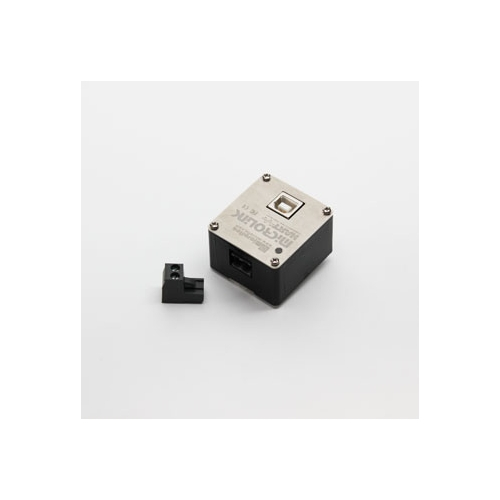

Microflex 101-0032 MicroLink DIN Rail Mounted HART Protocol Modem

  • Brand Microflex
  • Part # 101-0032
  • Model # MicroLink
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Microflex, 101-0032, MicroLink DIN Rail Mounted HART Protocol Modem with USB Interface

Includes

  • USB drivers for Windows 8, 7, Vista, XP, and 2000
  • PACTware and Microflex Generic HART DTM-6 on a CD

MicroLink HART protocol modems provide the hardware interface between Highway Addressable Remote Transducer devices (HART®) and a Windows® PC with a USB port. Universal Serial Bus (USB) drivers make MicroLink compatible with most software developed for RS-232 serial port interface modems. MicroLink appears as an RS-232 Com port to your software. Our MicroLink USB modems are compatible with all certified HART devices and all leading HART configuration and monitoring software that use an RS-232 serial port for the interface.

Features

  • Complete HART protocol interface
  • DIN Rail Mounted (35mm)
  • No external power needed - supplied by USB
  • LED provides device status
  • Drivers enable virtual RS-232 port for compatibility with existing software
  • Complies with HART physical layer
  • Transformer isolation simplifies loop connections and eliminates grounding effects
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Enclosure
Polycarbonate plastic with Stainless Steel Cover
Weight5 ounces
USB
ConnectorUSB-B
CompatibilityUSB 1.1, USB 2.0, and USB 3
Active Current30mA Max
Suspend CurrentLess than 600µA Typical
HART
TerminationPlugable Screw Terminals, 26-12 AWG
Connection MethodTransformer Isolated, Capacitor Coupled
DC Loop Voltage50Vdc Max
Demodulation Jitter12% of 1 bit Typical
Carrier Detect Threshold100mV Typical
Leakage to Process Loop±10µA Max
Status LED
GreenReady &Healthy
RedTransmitting HART packet
OrangeReceiving HART packet
Environmental
Operating Temperature-30°C to 60°C (-22°F to 140°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Humidity0 to 95% (non-condensing)
Product Details
Enclosure
Polycarbonate plastic with Stainless Steel Cover
Weight5 ounces
USB
ConnectorUSB-B
CompatibilityUSB 1.1, USB 2.0, and USB 3
Active Current30mA Max
Suspend CurrentLess than 600µA Typical
HART
TerminationPlugable Screw Terminals, 26-12 AWG
Connection MethodTransformer Isolated, Capacitor Coupled
DC Loop Voltage50Vdc Max
Demodulation Jitter12% of 1 bit Typical
Carrier Detect Threshold100mV Typical
Leakage to Process Loop±10µA Max
Status LED
GreenReady &Healthy
RedTransmitting HART packet
OrangeReceiving HART packet
Environmental
Operating Temperature-30°C to 60°C (-22°F to 140°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Humidity0 to 95% (non-condensing)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
