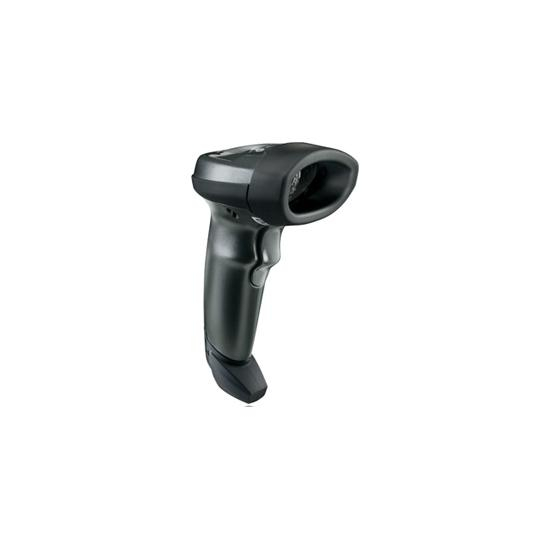

Zebra LI2208-SR7U2100AZN LI2208 with RS232 Kit, Black

  • Brand Zebra
  • Part # LI2208-SR7U2100AZN
  • Model # LI2208
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

LI2208-SR7U2100AZN,LI2208 with USB Kit, Black

The LI2208 represents the next generation in 1-D scanning and builds on our most popular scanner ever, the LS2208. You get the same reliability and ergonomics of the LS2208, combined with enhanced features such as extended range and support for mobile bar codes. With our best-in-class linear imager, you can count on unparalleled scanning performance on every bar code, every time

Zebra EVM, LI2208, USB Kit, Includes Scanner (LI2208-SR00007ZZWW) AND 7 Foot USB Cable (CBA-U21-S07ZAR), Black - North American Only

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Physical Characteristics
Dimensions6.30 in. H x 2.64 in. W x 3.90 in. L 16 cm H x 6.7 cm W x 9.9 cm L
Weight4.95 oz./140 grams
Display320 X 240 QVGA color graphic display
Voltage and Current5VDC ± 10% <165 mA scanning <40 mA standby <2.5 mA USB suspend <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
Power SourceHost power or external power supply
Supported host interfacesUSB, RS232, Keyboard Wedge and IBM RS485
Keyboard SupportSupports over 90 international keyboards
DECODE RANGES (TYPICAL WORKING RANGES*)
3 milMinimum resolution
4 mil4-10 in./10.2-25.4 cm
5 mil3-13 in./7.6-33 cm
7.5 mil1.5-19 in./ 3.8-48.3 cm
13 mil (100% UPC-A)1-31 in./2.5-78.7 cm
20 mil1-42 in./2.5-106.7 cm
26 mil (200% UPC-A)3-55 in./7.6-140 cm
100 mil reflective>20 ft./6 m
User Environment
SealingIP42
Operating Temp.32° F to 122° F/ 0° C to 50° C
Humidity5% to 85% RH (non-condensing)
Storage Temp.-40° F to 158° F/-40° C to 70° C
Humidity5% to 95% RH, non-condensing
Drop SpecificationOver 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./ 1.8 m drops to concrete
Tumble Specification1,000 cycles (2000 drops) in 1/2 meter tumbler
Bar Code SymbologiesUPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/ JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 ( ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1-D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded
Ambient Lighting ImmunityMax 108,000 lux
Performance Characteristics
Skew Tolerance±65°
Pitch Tolerance±65°
Roll Tolerance±45°
Scan PatternSingle bright aiming line
Scan AngleHorizontal 35
Scan Speed547 scans per second
Motion Tolerance25 in./ 63.5 cm per second
Light SourceLED Class 1 device 617nm (amber )
Min. Print Contrast15% MRD
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Physical Characteristics
Dimensions6.30 in. H x 2.64 in. W x 3.90 in. L 16 cm H x 6.7 cm W x 9.9 cm L
Weight4.95 oz./140 grams
Display320 X 240 QVGA color graphic display
Voltage and Current5VDC ± 10% <165 mA scanning <40 mA standby <2.5 mA USB suspend <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
Power SourceHost power or external power supply
Supported host interfacesUSB, RS232, Keyboard Wedge and IBM RS485
Keyboard SupportSupports over 90 international keyboards
DECODE RANGES (TYPICAL WORKING RANGES*)
3 milMinimum resolution
4 mil4-10 in./10.2-25.4 cm
5 mil3-13 in./7.6-33 cm
7.5 mil1.5-19 in./ 3.8-48.3 cm
13 mil (100% UPC-A)1-31 in./2.5-78.7 cm
20 mil1-42 in./2.5-106.7 cm
26 mil (200% UPC-A)3-55 in./7.6-140 cm
100 mil reflective>20 ft./6 m
User Environment
SealingIP42
Operating Temp.32° F to 122° F/ 0° C to 50° C
Humidity5% to 85% RH (non-condensing)
Storage Temp.-40° F to 158° F/-40° C to 70° C
Humidity5% to 95% RH, non-condensing
Drop SpecificationOver 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./ 1.8 m drops to concrete
Tumble Specification1,000 cycles (2000 drops) in 1/2 meter tumbler
Bar Code SymbologiesUPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/ JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 ( ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1-D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded
Ambient Lighting ImmunityMax 108,000 lux
Performance Characteristics
Skew Tolerance±65°
Pitch Tolerance±65°
Roll Tolerance±45°
Scan PatternSingle bright aiming line
Scan AngleHorizontal 35
Scan Speed547 scans per second
Motion Tolerance25 in./ 63.5 cm per second
Light SourceLED Class 1 device 617nm (amber )
Min. Print Contrast15% MRD
