| Physical Characteristics |

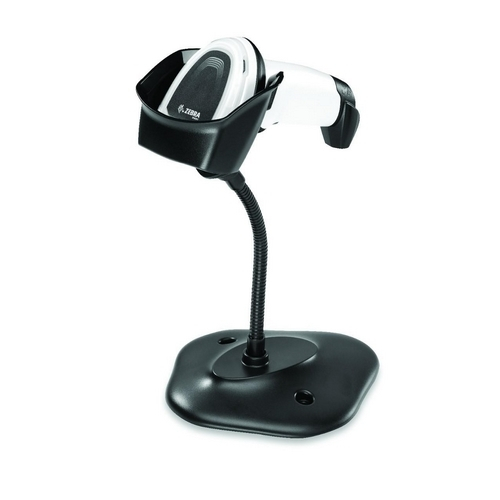

| Dimensions | Corded DS8108-HC and Cordless DS8178-HC: 6.6 in. H x 2.6 in. W x 4.2 in. D 16.8 cm. H x 6.6 cm. W x 10.7 cm. D |
| Weight (w/o cable) | Corded DS8108-HC: 5.5 oz./156 g |
| Input Voltage Range | Without auxiliary scanner: Standby: 5 VDC +/-10% at 125ma avg. Operating: 5 VDC +/-10% at 480ma avg. With auxiliary scanner: Standby: 12 VDC +/-10% at 100ma avg. Operating: 12 VDC +/-10% at 400ma avg. |
| Supported Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| FIPS Security Certification | Certified Compliant with FIPS 140-2 |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear View LEDs, Beeper (Adjustable Tone & Volume), Battery Indicator; Vibration |
| Performance Characteristics |
| Illumination | Two (2) Warm White LEDs |
| Imager Field of View | 48° H x 37° V Nominal |
| Image Sensor | 1,280 x 960 pixels |
| Minimum Print Contrast | 16% minimum reflective difference |
| Skew/Pitch Roll Tolerance | +/- 60°; +/- 60°; 0-360° |
| Light Source | Aiming Pattern: True Green (528 nm) Circular |
| Imaging Characterisics |
| Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality | 109 PPI on an A4 document |
| Minimum Element Resolution | Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 5.0 mil; QR Code - 5.0 mil; PDF - 4.0 mil |
| User Environment | |
| Sealing | IP42 |
| Operating Temp. | Scanner: 32° to 122° F/0° to 50° C Presentation Mode: 32° to 104° F/0° to 40° C |
| Charging Temperature | 32° to 104° F/0° to 40° C |
| Storage Temperature | -40° to 158° F/-40° to 70° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
| Tumble Specification | Designed to withstand 2,000 tumbles at 1.5 ft./0.5 m tumbler |
| Electrostatic Discharge (ESD) | DS8108-HC/DS8178-HC and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 9,000 Foot Candles/0 to 96,840 Lux |
| RADIO SPECIFICATIONS |
| Bluetooth Radio | Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft. (100m) and Class 2 33 ft. (10m), Serial Port and HID Profiles |
| Adjustable Bluetooth Power | Class 1: Output power adjustable down from 4 dBm in 8 Steps Class 2: Output power adjustable down from 2 dBm in 8 Steps |
| BATTERY |
| Battery Capacity/ Battery Type | 2,500 mAh Li-Ion Power Precision+ Battery |
| Scans Per Battery Charge | 65,000 (1 scan per second) |
| Operating Time Per Full Charge | 83 hours |
| Typical Charge Time from Empty to Full Charge |
| Power Source | Desk/Wall Cradle | Presentation Cradle |
| Standard USB | 7 hrs 45 min | 9 hrs 15 min |
| BC1.2 USB | 3 hrs | 3 hrs 15 min |
| External 5V Source | 4 hrs 30 min | 5 hrs |
| External 12V Source | 2 hrs 15 min | 2 hrs 15 min |
