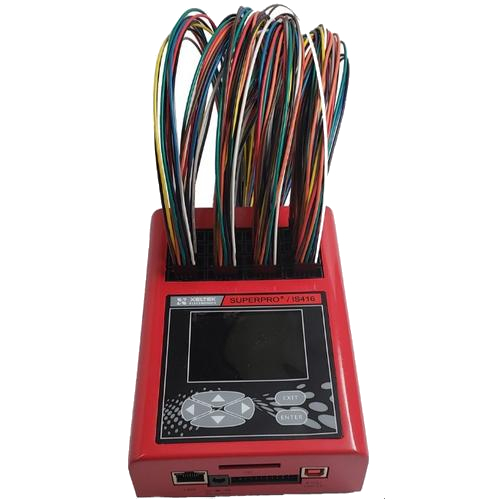

Xeltek SuperPro IS416 In-System Gang Programmer

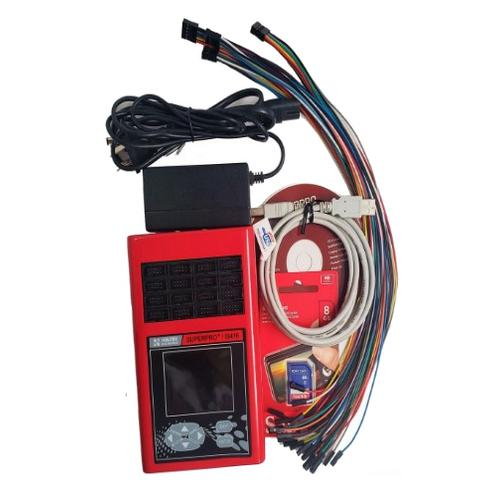

SuperPro IS416 Includes Only:

• 4 x ISP Cables
• Software CD
• AC Adapter
• USB Cable
• SD Card for stand-alone operation

Features with all optional accessories:

• High-speed ISP production programmer with industrial grade quality. The ultimate choice for integrating ISP sub-systems.
• Supports almost all serial chips which include, but not limited, SPI, I2C, JTAG, BDM, UART, MON, SCI, SWD, SBW, C2D, ICC, SWIM, SDQ, DBG, ICE, CSI, LIN
• Supported manufactures include, but not limited, ABOV, Ali, Altera, Atmel, Catalyst, Cypress, Freescale, Fujitsu, Haier, Hitachi, Hynix, Infineon, IR, ISSI, Lattice, Macronix, Maxim, Microchip, Micron, NEC, Numonyx, NXP, ON, Panasonic, Renesas, Rohm, Samsung, Sanyo, Silicon, Labs, Spansion, SST, ST, Teridian, TI, Toshiba, Winbond, Xilinx, Zilog
• Programs up to 16 serial chips or 4 parallel NAND, NOR, eMMC chips simultaneously
• Support ISP serial programming to multiple chips of different models or types in one unit
• General control ports supply signal isolation, relay isolation, power supply control, click detection, LED expansion display and other control signals
• High-speed programming with adjustable speed meets board load requirement or ISP cable length

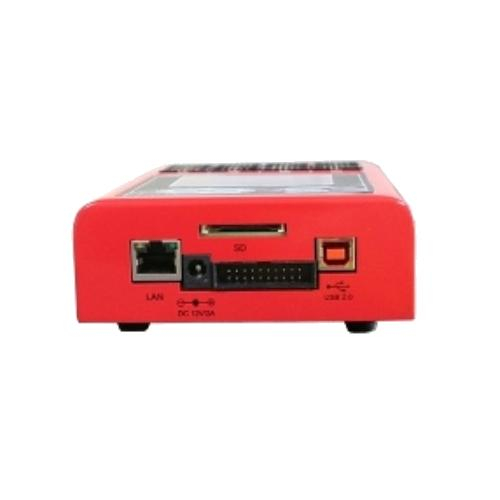

• Three modes: 1) Online mode. Connected to local PC by USB2.0(high speed) 2) Off-line mode. Using the stand-alone keyboard, LCD display, and mobile memory (standard SD cards), SuperPro IS03 can run independently off-line for flexible production and field setup. Project file size is only limited by the SD card memory size.3) Network mode. Connected to local network, control locally or remotely.
• Advanced pin-driver technology supplies cleaner signals, wider voltage range and accurate / higher clock frequency. Precise time generators ensure devices with 1.2V-5.0V Vcc higher speed and qualified product ratio
• Chip safety security mechanism: the built-in precise voltage self-calibration circuit ensures the voltage is within the preset range at any time. The self-diagnosis function continuously detects hardware fault to ensure the machine run normally.
• Over-current, over-voltage and ESD protection avoids damaging the programmers
• User operation interface
• Log document and production statistics function facilitates quality-tracking
• Copyright Protection with SD encryption, document right management and encryption, output limitation and remote control

Applications:

• Most suitable for PCB panel programming
• ATE, FCT, ICT, Test Fixture integration
• Core of ISP station
• General ISP gang programming for volume production
• Tool used for firmware in-system update
• Field service and repairing tool for electronic equipment such as automotive and air conditioners.

Superpro IS416 is a universal ISP Gang programmer which supports devices with almost all serial protocols. Programs up to 16 serial devices simultaneously. Up to 4 parallel devices like eMMC, NAND, NOR FLASH can be programmed in system simultaneously. USB2.0 or network remote and stand-alone operation modes.
