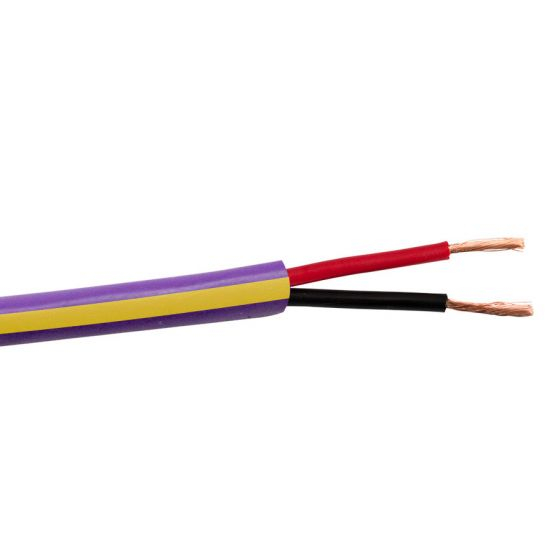

Buy SCP VANTAGE-16/2, Vantage Compatible Cable, 2C/16 AWG, 600V Rated

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

SCP manufactures infrastructure cables that are compatible with Vantage™ control systems

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Length

1000 ft

Conductor

Material: Stranded Bare Copper
Size: 16AWG x 2C(2.11mm^2)
Construction: 65/0.16mm +/-0.004mm

Insulation

Material: PVC
Min.Thickness: 0.7mm
AVG.Thickness: 0.78mm
Diameter: 3.05mm +/-0.10mm
Colors: Black & Red

Jacket

Material: PVC
Min. Thickness: 0.86mm
AVG. Thickness: 0.95mm
Diameter: 8.0mm +/-0.20mm
Rip Cord: Nylon
Color: Purple with yellow stripe

Shield

Wrap PET tape
Drain wire TC 1/0.50+/-0.005
Shield: AL Foil

Bend Radius

Min 15D/120mm

Operating Temperature Range

- 20°C +75°C

Test Voltage

1000V/min

Conductor Resistance

Max 15.5 ohm/km at 20°C

Insulation Resistance

Min 50MΩ*km at 20°C

Dielectric Strength

Min AC2.5KV

Approx. Dimension(mm)

380x290x200

Notes

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Length

1000 ft

Conductor

Material: Stranded Bare Copper
Size: 16AWG x 2C(2.11mm^2)
Construction: 65/0.16mm +/-0.004mm

Insulation

Material: PVC
Min.Thickness: 0.7mm
AVG.Thickness: 0.78mm
Diameter: 3.05mm +/-0.10mm
Colors: Black & Red

Jacket

Material: PVC
Min. Thickness: 0.86mm
AVG. Thickness: 0.95mm
Diameter: 8.0mm +/-0.20mm
Rip Cord: Nylon
Color: Purple with yellow stripe

Shield

Wrap PET tape
Drain wire TC 1/0.50+/-0.005
Shield: AL Foil

Bend Radius

Min 15D/120mm

Operating Temperature Range

- 20°C +75°C

Test Voltage

1000V/min

Conductor Resistance

Max 15.5 ohm/km at 20°C

Insulation Resistance

Min 50MΩ*km at 20°C

Dielectric Strength

Min AC2.5KV

Approx. Dimension(mm)

380x290x200

Note

Note: Please read description carefully. Do not base your order on the picture presented.
