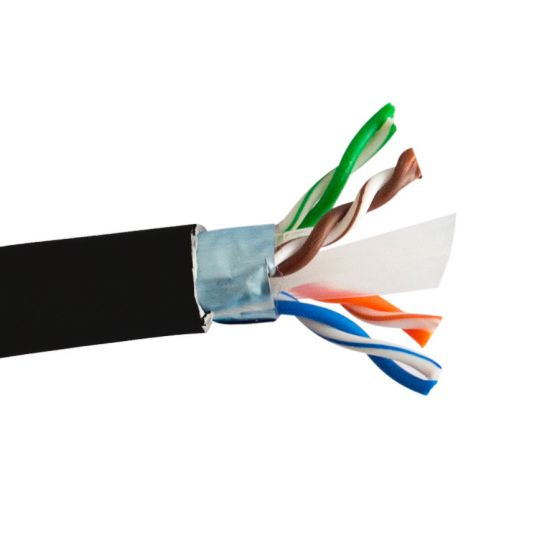

Buy SCP CAT6SH-OUT, Cat6 Shielded Cable, UV Sun Res PE - Black, UV Outdoor

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Shielded
550MHz 23 AWG
ANSI/TIA 568.2-D,ISO/IEC 11801 Class E
Sun Resistant PE Jacket
Black Color
Packed in 1000 FT/305M Spool

Regulatory

ANSI/TIA 568.2-D and ISO/IEC 11801 EU RoHS 2011/65 EU Compliant

Applications:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Length

1000 ft

Conductor

Material: Solid Bare Copper
Size: 23AWG x 4P
Construction: 1/0.57+/-0.005mm

Insulation

Material: HDPE
Min.Thickness: 0.2mm
AVG.Thickness: 0.22mm
Diameter: 1.1+/-0.05mm
Colors: Blue - White/Blue, Orange - White/Orange, Green - White/Green, Brown - White/Brown

Jacket

Material: LLEPE
Min. Thickness: 0.6mm
AVG. Thickness: 0.7mm
Diameter: 7.5+/-0.20mm
Rip Cord: Nylon
Color: Black

Shield

Wrap PET tape
Drain wire TC 1/0.50+/-0.005
Shield: AL Foil

Bend Radius

Min 20D/150mm

Operating Temperature Range

- 20°C +75°C

Minimum installation temperature

0°C + 40°C

Conductor Resistance

Max 72.2ohm/km at 20C

Dielectric Strength

Min AC1.5KV

Spark Test

5.0KV

Rated Voltage

Max 300Volts

DC Resistance Unbalance

Max 5%

Pair-to-Ground Capacitance Unbalance

Max 3300pF/km

Characteristic Impedance

100 +/-15OHM

Nominal Velocity of Propagation (%)

67~69

Propagation Delay

Max 536ns/100m

Delay Skew

Max 45ns/100m

Approx. Dimension(mm)

380x290x200

Notes

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Length

1000 ft

Conductor

Material: Solid Bare Copper
Size: 23AWG x 4P
Construction: 1/0.57+/-0.005mm

Insulation

Material: HDPE
Min.Thickness: 0.2mm
AVG.Thickness: 0.22mm
Diameter: 1.1+/-0.05mm
Colors: Blue - White/Blue, Orange - White/Orange, Green - White/Green, Brown - White/Brown

Jacket

Material: LLEPE
Min. Thickness: 0.6mm
AVG. Thickness: 0.7mm
Diameter: 7.5+/-0.20mm
Rip Cord: Nylon
Color: Black

Shield

Wrap PET tape
Drain wire TC 1/0.50+/-0.005
Shield: AL Foil

Bend Radius

Min 20D/150mm

Operating Temperature Range

- 20°C +75°C

Minimum installation temperature

0°C + 40°C

Conductor Resistance

Max 72.2ohm/km at 20C

Dielectric Strength

Min AC1.5KV

Spark Test

5.0KV

Rated Voltage

Max 300Volts

DC Resistance Unbalance

Max 5%

Pair-to-Ground Capacitance Unbalance

Max 3300pF/km

Characteristic Impedance

100 +/-15OHM

Nominal Velocity of Propagation (%)

67~69

Propagation Delay

Max 536ns/100m

Delay Skew

Max 45ns/100m

Approx. Dimension(mm)

380x290x200

Note

Note: Please read description carefully. Do not base your order on the picture presented.
