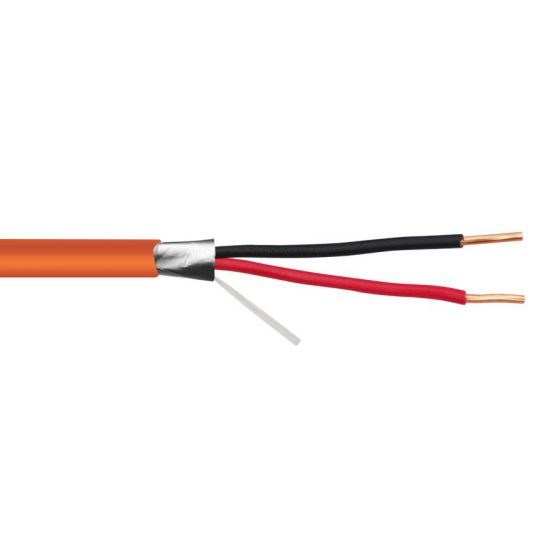

Buy SCP 16/2FPLR-SH-OR, FPLR Shielded Fire Alarm Orange Cable, 1000 ft

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Color:: Color: Orange

Applications:

Fire Alarm
Fire Protective Circuits
Smoke Detectors
Monitor/Detection
Signal
Control Circuits
Initiating Circuits
Notification Circuits

Features:

Multi-Conductor Shielded FPLR- Insulated solid bare copper conductors
Twisted with an overall AL shield, and sunlight resistant PVC jacket
Ripcord and sequential foot markings printed on jacket
ETL FPLR, CL2R, NEC Article 760, California State Fire Marshall

16/2FPLR-SH-WT is comparable to:

Belden: 5220FL, 9575
Honeywell: 4406
Coleman: 98630

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Length

1000 ft

Color

Orange

Final Diameter

0.174 inches (4.420 mm)

Total Cable Weight

45 kg/km 30 lbs/1000 ft

Conductor

16 AWG Solid Bare Copper

Insulation

PVC

Shield

Foil Shield 0.625

Drain Ground

22 AWG Solid STC Cond

Outer Jacket

PVC

Print Notes

Sequentially marked per 2FT (0 - infinity)

Electrical Characteristics

DC Resistance 25°C: 4.2 Ohms / 1000 ft
Mutual Capacitance : 65.1 pF/ft
Cond to Shield Cap. : 121 pF/ft
Impedance : 40 Ohms
Velocity of Prop : 63 %
Inductance. : 1.3 mH/km

Additional Information

Ins Thickness: 0.010
Jkt Thickness: 0.015
Certified: UL CL2R/CL3R OR FPLR/CMG/CMR
Flame Rating: Riser
Max Voltage: 300V
Packaging: Plywood Spool 12 x 7 x 5"
Packaged Weight: 30 lbs / 14 kgs

Notes

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Length

1000 ft

Color

Orange

Final Diameter

0.174 inches (4.420 mm)

Total Cable Weight

45 kg/km 30 lbs/1000 ft

Conductor

16 AWG Solid Bare Copper

Insulation

PVC

Shield

Foil Shield 0.625

Drain Ground

22 AWG Solid STC Cond

Outer Jacket

PVC

Print Notes

Sequentially marked per 2FT (0 - infinity)

Electrical Characteristics

DC Resistance 25°C: 4.2 Ohms / 1000 ft
Mutual Capacitance : 65.1 pF/ft
Cond to Shield Cap. : 121 pF/ft
Impedance : 40 Ohms
Velocity of Prop : 63 %
Inductance. : 1.3 mH/km

Additional Information

Ins Thickness: 0.010
Jkt Thickness: 0.015
Certified: UL CL2R/CL3R OR FPLR/CMG/CMR
Flame Rating: Riser
Max Voltage: 300V
Packaging: Plywood Spool 12 x 7 x 5"
Packaged Weight: 30 lbs / 14 kgs

Note

Note: Please read description carefully. Do not base your order on the picture presented.
