Morris 11846 12-10 AWG 0.110mm x 0.039mm N.I. Blade Terminal, (Pack of 100 pcs)

Morris, 11846, 12-10 AWG 0.110mm x 0.039mm Yellow Nylon Insulated Blade Terminal

Features:

• Blade Terminals are Nylon Insulated
• Color Coded Insulation for easy identification
• Manufactured from High Strength Electrolytic Copper Alloy
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand “Hang Up”, and provides mechanical strain relief
• Wire range stamped on the surface for easy interpretation
• 11842 & 11844 has a Butted Seam
• 11846 has a Brazed Seam
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Maximum Electric Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp
• cULus Listed

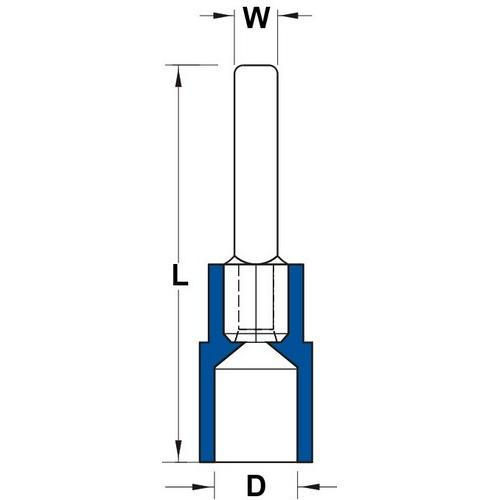

• Dimension Measurements = Inches
• Order Qty of 100 = 1 Bag of 100
