Buy Morris 11826, 12-10 AWG 0.110mm Non-Insulated Pin Terminal, (Pack of 100 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

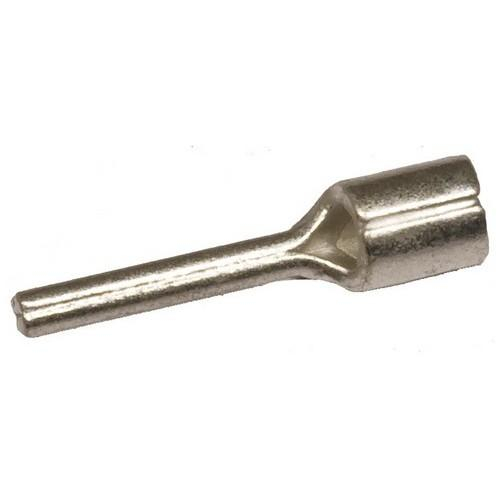

12-10 AWG 0.110mm Non-Insulated Pin Terminal

Features:

Non-Insulated Pin Terminal Material: Electro-Tin Plated Electrolytic Copper
Brazed Seam
Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
Maximum Electric Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp
302°F(150°C) 600 Volts Max
cULus Listed

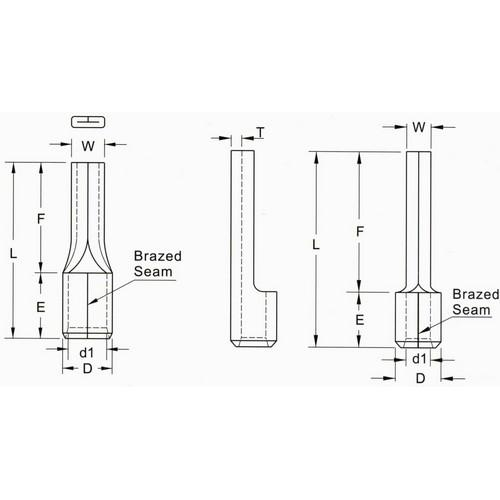

Dimension Measurements = Inches
Order Qty of 100 = 1 Bag of 100

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Note: Please read description carefully. Do not base your order on the picture presented.
