Marson M86232 5052 Aluminum Rivet, Button Head, 0.020" - 0.125"

Thread Size: 0.020" - 0.125"
  • Brand Marson
  • Part # M86232
  • Model # 5052
  • Condition
    Brand New
Buy in Bulk 1 Applicable Promotion(s)
Show All

  • Buy 200 pcs, get 7% off

    Save 7% each on Marson M86232 5052 Aluminum Rivet, Button Head, 0.020" - 0.125" when you purchase 200 or more

Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Thread Size:
Thread Size: 0.020" - 0.125"

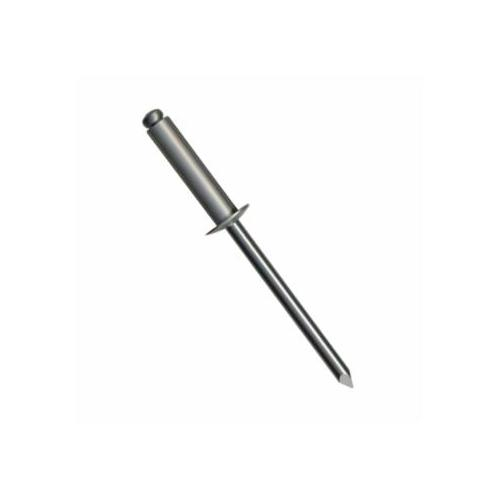

Marson, M86232, 5052 Aluminum Rivet, Aluminum Mandrel, Buttonhead, 0.020" - 0.125"

Features:

  • For blind fastening where there is no access to opposite side of work
  • Simple to install
Unit of MeasurePack of 50 pcs
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Drill Size#20
Fastener Diameter (Nom) (inch)(.156)
Body MaterialAluminum
StyleOpen End
RoHS CompliantYes
Body FinishPlain
Material DetailAluminum 5052
Finish DetailPlain
Fractional Diameter Size (inch)(5/32)
Head Height (inch)(.050)
Grip Range (inch).020-.125
Head Height (Metric)(1.27)
Tensile Strength Lbf. (kN.)340 (1.51)
Mandrel FinishPlain
Head TypeDome
Mandrel MaterialAluminum
Shear Strength Lbf. (kN.)230 (1.02)
Fastener Diameter (Nom) (Metric)(3.96)
Mandrel Diameter (Nom) (inch)(0.156) 3.96mm
Minimum Grip (inch)(.020) 0.50mm
Maximum Hole Size (inch)(.164) 4.16mm
Maximum Grip (inch)(.125) 3.17mm
Minimum Hole Size (inch)(.160) 4.06mm
Head Diameter (inch)(.312)
Head Diameter (Metric)(7.92)
Body Length (Nom) (inch)(.300) 7.620mm
TypeBlind Rivets
