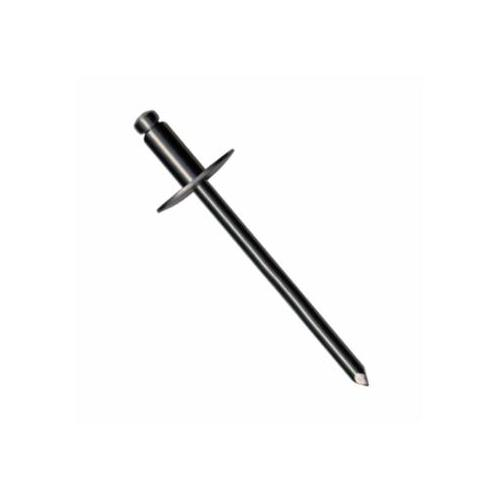

Marson M44338 ValueRivet Steel Rivet, Large Flange, 0.126" - 0.250"

  • Brand Marson
  • Part # M44338
  • Model # ValueRivet
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Marson, M44338, ValueRivet Open End Blind Aluminum / Steel Rivet, Large Flange, 0.126" - 0.250"

Features:

  • For blind fastening where there is no access to opposite side of work
  • Simple to install
Unit of MeasurePack of 500 pcs
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Drill Size#20
Fastener Diameter (Nom) (inch)(.156)
Body MaterialAluminum
StyleOpen End
RoHS CompliantYes
Body FinishPlain
Material DetailAluminum 5056
Finish DetailPlain
Fractional Diameter Size (inch)(5/32)
Head Height (inch)(.070)
Grip Range (inch).188-.250
Head Height (Metric)(1.77)
Tensile Strength Lbf. (kN.)470 (2.09)
Mandrel FinishZinc Clear Trivalent
Head TypeLarge Flange
Mandrel MaterialSteel
Shear Strength Lbf. (kN.)300 (1.33)
Fastener Diameter (Nom) (Metric)(3.96)
Mandrel Diameter (Nom) (inch)(0.156) 3.96mm
Minimum Grip (inch)(.188) 4.77mm
Maximum Hole Size (inch)(.164) 4.16mm
Maximum Grip (inch)(.250) 6.35mm
Minimum Hole Size (inch)(.160) 4.06mm
Head Diameter (inch)(.468)
Head Diameter (Metric)(11.89)
Body Length (Nom) (inch)(.425) 10.795mm
TypeBlind Rivets
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Drill Size#20
Fastener Diameter (Nom) (inch)(.156)
Body MaterialAluminum
StyleOpen End
RoHS CompliantYes
Body FinishPlain
Material DetailAluminum 5056
Finish DetailPlain
Fractional Diameter Size (inch)(5/32)
Head Height (inch)(.070)
Grip Range (inch).188-.250
Head Height (Metric)(1.77)
Tensile Strength Lbf. (kN.)470 (2.09)
Mandrel FinishZinc Clear Trivalent
Head TypeLarge Flange
Mandrel MaterialSteel
Shear Strength Lbf. (kN.)300 (1.33)
Fastener Diameter (Nom) (Metric)(3.96)
Mandrel Diameter (Nom) (inch)(0.156) 3.96mm
Minimum Grip (inch)(.188) 4.77mm
Maximum Hole Size (inch)(.164) 4.16mm
Maximum Grip (inch)(.250) 6.35mm
Minimum Hole Size (inch)(.160) 4.06mm
Head Diameter (inch)(.468)
Head Diameter (Metric)(11.89)
Body Length (Nom) (inch)(.425) 10.795mm
TypeBlind Rivets
Note

Note: Please read description carefully. Do not base your order on the picture presented.
