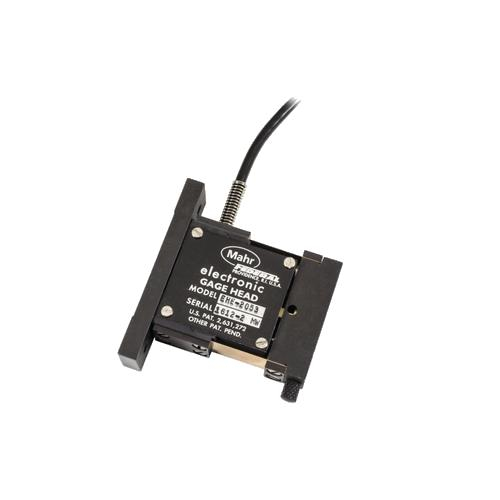

Buy Mahr 2120421, Millimar EHE-2053 Inductive Probe

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Probe type	Fixed Back Plate EPL-1140 (15,8 mm / 0.625” wide), tamper-proof mounted. Provides means of attachment for mounting on adjustable plates or slides in fixtures for continuous duty application.
Measuring range from	-0.25 mm
Product type	EHE-2053
Measuring range up to	0.25 mm
Measuring range from	-0.01 inch
Measuring range up to	0.01 inch
Measuring force (N)	Adjustalbe 0,85 - 4N (3oz. - 14 oz.)
Repeatability fw (µm)	0.1 µm
Repeatability fw (inch)	0.5 uinch
Cable length	2.4 m
Compatibility	Federal

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Probe type	Fixed Back Plate EPL-1140 (15,8 mm / 0.625” wide), tamper-proof mounted. Provides means of attachment for mounting on adjustable plates or slides in fixtures for continuous duty application.
Measuring range from	-0.25 mm
Product type	EHE-2053
Measuring range up to	0.25 mm
Measuring range from	-0.01 inch
Measuring range up to	0.01 inch
Measuring force (N)	Adjustalbe 0,85 - 4N (3oz. - 14 oz.)
Repeatability fw (µm)	0.1 µm
Repeatability fw (inch)	0.5 uinch
Cable length	2.4 m
Compatibility	Federal

Note: Please read description carefully. Do not base your order on the picture presented.
