Features:

Proof of form and position deviations as per DIN/ISO 1101
Fully automatic measuring sequences
Precision roundness measuring axis (C)
Motorized vertical measuring axis (Z)
Motorized horizontal positioning axis (X)
Manual centering and tilting table
T20W manual length measuring probe
Ergonomic control panel, can also be used to start selected measuring programs (P1, P2, P3)
All-in-one PC with touchscreen function for easy and fast operation

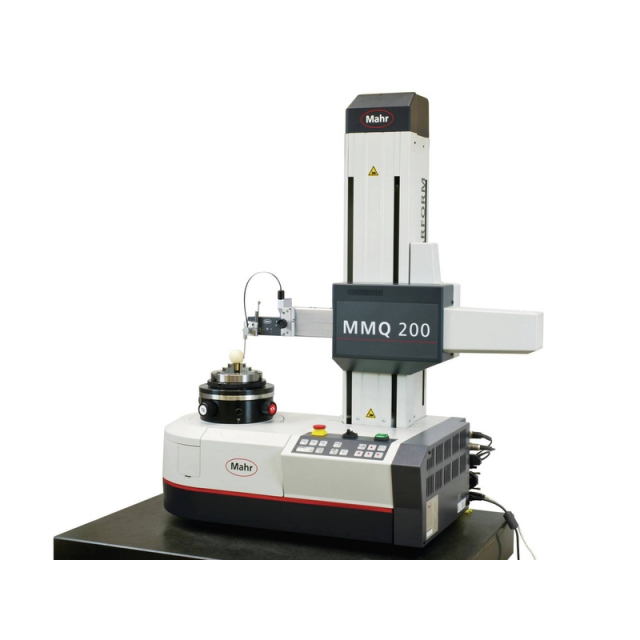

The MMQ 200 is the compact form measuring machine for manufacturing workshops and inspection rooms.

MarForm EasyForm Software for MMQ

The easy way to measure form. Intuitive operation enables immediate measurements without programming. Thanks to the touch-screen technology, EasyForm can also be quickly and easily operated without mouse or keyboard. The required settings are limited to a minimum, thus extremely shortening the time until a finished measuring record is in your hands.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Roundness Deviation (µm+µm/mm Measuring Height) *

0,015 + 0,0003

Measuring Path, Motorized Z (mm)

250

Straightness Deviation / 100 mm Measuring Path (µm)**, Z Axis

0.15

Straightness Deviation / Total Measuring Path (µm)**, Z Axis

0.3

Parallelism Deviation Z-/C Axis in Tracing Direction, Measuring Path (µm)

0.5

Measuring Speed (mm/s), Z Axis

0.5-30

Positioning Speed (mm/s), Z Axis

0,5-100

Roundness Deviation (µm+µm/mm Measuring Height) **

0,03 + 0,0006

Axial Runout Deviation (µm+µm/mm Measuring Radius) *

0,02 + 0,0001

Axial Runout Deviation (µm+µm/mm Measuring Radius) **

0,04 + 0,0006

Centering and Tilting Table

manual

Table Diameter (mm)

160

Table Load Capacity, Centered (N)

200

Speed (rpm) 50 Hz / 60 Hz

0.2-15

* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm.

Product Details

Roundness Deviation (µm+µm/mm Measuring Height) *

0,015 + 0,0003

Measuring Path, Motorized Z (mm)

250

Straightness Deviation / 100 mm Measuring Path (µm)**, Z Axis

0.15

Straightness Deviation / Total Measuring Path (µm)**, Z Axis

0.3

Parallelism Deviation Z-/C Axis in Tracing Direction, Measuring Path (µm)

0.5

Measuring Speed (mm/s), Z Axis

0.5-30

Positioning Speed (mm/s), Z Axis

0,5-100

Roundness Deviation (µm+µm/mm Measuring Height) **

0,03 + 0,0006

Axial Runout Deviation (µm+µm/mm Measuring Radius) *

0,02 + 0,0001

Axial Runout Deviation (µm+µm/mm Measuring Radius) **

0,04 + 0,0006

Centering and Tilting Table

manual

Table Diameter (mm)

160

Table Load Capacity, Centered (N)

200

Speed (rpm) 50 Hz / 60 Hz

0.2-15

* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
