Buy Lovejoy 68514458578, LC190 LC Type Hub with Keyway - Metric Bore

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514458578, LC190 LC Type Hub with Keyway - Metric Bore, 48 mm, 14 x 3.8 mm

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	2
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	6.20 lb
Weight (Complete Coupling w/ Min. Bore)	17.00 lb
Weight (Complete Coupling w/ Max. Bore)	13.00 lb
Bore Size	48.00 mm
Coupling Size	LC190
Keyway Size (W x D)	14 x 3.8 mm

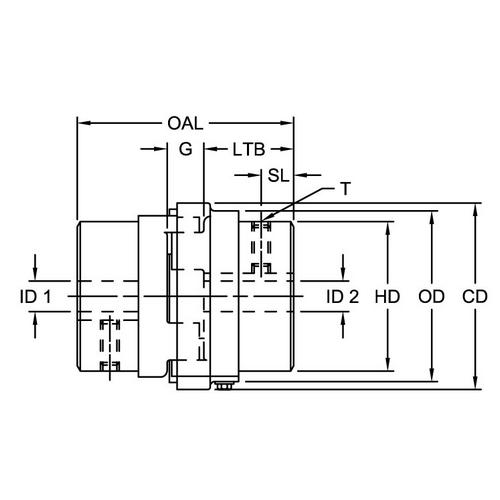

Length thru Bore	1.94 in (49.28 mm)
Overall Length	4.880 in (123.95 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.120 in (54.00 mm)
Approx. Bore	2.940 in (74.68 mm)
Dimension CBD	5.010 in (127.25 mm)
Dimension G	1 in (25.40 mm)
Outside Diameter	4.50 in (114.30 mm)
Dimension SL	0.880 in (22.35 mm)
Cubic inches	59.535 in3
Nominal Torque	1728.00 in x lb (195.24 N x m)
Max. Speed	5000 rpm
Moment of Inertia WR	39.256 lb-in2
Rated HP at 1000 rpm	2.70 kW
Rated HP at 1,200 rpm	32.40 hp
Rated HP at 1,800 rpm	49.00 hp
Rated HP at 3,600 rpm	97.20 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	2
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	6.20 lb
Weight (Complete Coupling w/ Min. Bore)	17.00 lb
Weight (Complete Coupling w/ Max. Bore)	13.00 lb
Bore Size	48.00 mm
Coupling Size	LC190
Keyway Size (W x D)	14 x 3.8 mm
Length thru Bore	1.94 in (49.28 mm)
Overall Length	4.880 in (123.95 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.120 in (54.00 mm)
Approx. Bore	2.940 in (74.68 mm)
Dimension CBD	5.010 in (127.25 mm)
Dimension G	1 in (25.40 mm)
Outside Diameter	4.50 in (114.30 mm)
Dimension SL	0.880 in (22.35 mm)
Cubic inches	59.535 in3
Nominal Torque	1728.00 in x lb (195.24 N x m)
Max. Speed	5000 rpm
Moment of Inertia WR	39.256 lb-in2
Rated HP at 1000 rpm	2.70 kW
Rated HP at 1,200 rpm	32.40 hp
Rated HP at 1,800 rpm	49.00 hp
Rated HP at 3,600 rpm	97.20 hp

Note: Please read description carefully. Do not base your order on the picture presented.
