Buy Lovejoy 68514458574, LC150 LC Type Hub with Keyway - Metric Bore

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Keyway Size:: Keyway Size: 14 x 3.8 mm
Bore Size:: Bore Size: 48 mm
Coupling Size:: Coupling Size: 150

Lovejoy, 68514458574, LC150 LC Type Hub with Keyway - Metric Bore, 48 mm, 14 x 3.8 mm

Features:

Radially removable insert
Collar allows for maximum speed of 3,600 RPM
Collar manufactured from 1018 Steel

The LC Type coupling consists of one standard L Type hub (without collar attachment), one LC Type hub (provides collar attachment), one standard snap wrap center and one collar with screws.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

There is a $100.00 minimum order required when purchasing "Lovejoy" products

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Resources

Reviews

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.40 lb
Weight (Complete Coupling w/ Min. Bore)	9.10 lb
Weight (Complete Coupling w/ Max. Bore)	7.00 lb
Bore Size	48.00 mm
Coupling Size	LC150
Keyway Size (W x D)	14 x 3.8 mm

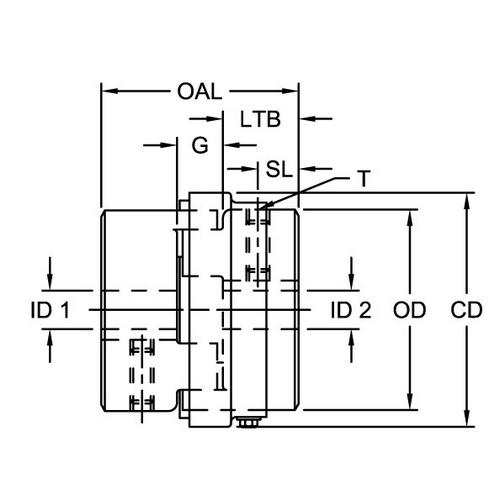

Length thru Bore	1.75 in (44.45 mm)
Overall Length	4.500 in (114.30 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.880 in (48.00 mm)
Approx. Bore	2.75 in (69.85 mm)
Dimension CBD	4.410 in (112.01 mm)
Dimension G	1 in (25.40 mm)
Outside Diameter	3.75 in (95.25 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	38.67188 in3
Nominal Torque	1240.00 in x lb (140.10 N x m)
Max. Speed	5000 rpm
Moment of Inertia WR	11.477 lb-in2
Rated HP at 1000 rpm	2.00 kW
Rated HP at 1,200 rpm	24.00 hp
Rated HP at 1,800 rpm	35.00 hp
Rated HP at 3,600 rpm	72.00 hp

Product Details

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.40 lb
Weight (Complete Coupling w/ Min. Bore)	9.10 lb
Weight (Complete Coupling w/ Max. Bore)	7.00 lb
Bore Size	48.00 mm
Coupling Size	LC150
Keyway Size (W x D)	14 x 3.8 mm
Length thru Bore	1.75 in (44.45 mm)
Overall Length	4.500 in (114.30 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.880 in (48.00 mm)
Approx. Bore	2.75 in (69.85 mm)
Dimension CBD	4.410 in (112.01 mm)
Dimension G	1 in (25.40 mm)
Outside Diameter	3.75 in (95.25 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	38.67188 in3
Nominal Torque	1240.00 in x lb (140.10 N x m)
Max. Speed	5000 rpm
Moment of Inertia WR	11.477 lb-in2
Rated HP at 1000 rpm	2.00 kW
Rated HP at 1,200 rpm	24.00 hp
Rated HP at 1,800 rpm	35.00 hp
Rated HP at 3,600 rpm	72.00 hp

Resources for Lovejoy 68514458574

Most Searched Products

Most Searched Products

Lovejoy LC Type Jaw Couplings

Note

Note: Please read description carefully. Do not base your order on the picture presented.
