Lovejoy, 68514456181, L150 L Type Hub without Keyway - Metric Bore, 48 mm, No Keyway

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.33 lb
Weight (Complete Coupling w/ Min. Bore)	7.00 lb
Weight (Complete Coupling w/ Max. Bore)	8.80 lb
Bore Size	48.00 mm
Coupling Size	L150
Keyway Size (W x D)	No Keyway

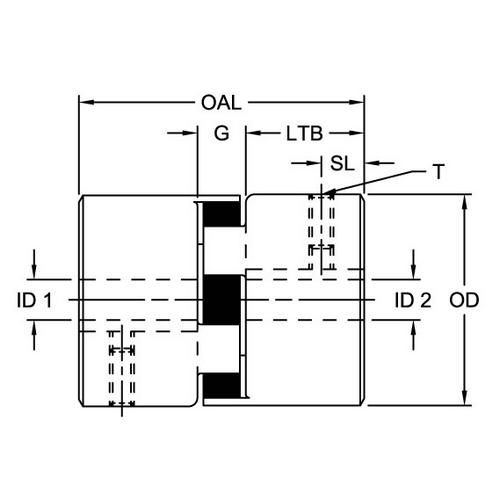

Length thru Bore	1.75 in (44.45 mm)
Overall Length	4.500 in (114.30 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.875 in (48.00 mm)
Hub Length	2.75 in (69.85 mm)
Dimension G	1 in (25.40 mm)
Outer Diameter	3.75 in (95.25 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	38.67188 in3
Nominal Torque	1240.00 in x lb (140.10 N x m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	2.00 hp
Rated HP at 1,200 rpm	24.00 hp
Rated HP at 1,800 rpm	35.00 hp
Rated HP at 3,600 rpm	72.00 hp

Notes
