Includes
- 1 Ligno-Ligno-VersaTec, RH - pin - pinless
- 1 RH BluePeg Probe, 1 RH Adapter,
- 1 RH Cable, 10 Sleeves with caps,
- 1 Case M
- 1 E-12 Electrode with Pins and Cable
| Item | Accessories of Package V2-KM | Image |

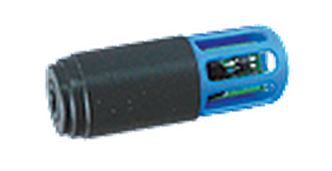

| RH-1RBP | RH BluePeg Probes can be connected to the Ligno-VersaTec moisture meter with Adapter H or with RH concrete cable. Complies to accuracy requirements of ASTM F2170. |  |

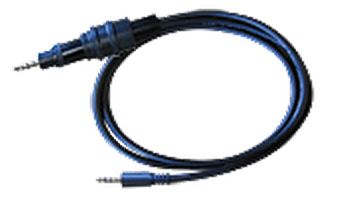

| RH-CC | RH Concrete Cable RH-C cable is used to connect RH BluePeg probe to a RH moisture meter or data logger. The black seal-plug is used during in-situ concrete testing. The plug fits into the sleeve, holds the RH Probe in place during measurements and prohibits air from escaping. The seal-plug also allows disconnecting the cable without removing the probe. |  |
| RH-A | RH Adapter The Adapter has 35mm stereo plugs (male) on both ends to connect Lignomat's RH BluePeg Probe directly to the Ligno-DuoTec BW. |  |
| RH-10S | Standard Sleeves Hole liner for RH in-situ concrete moisture testing. Sleeves and blue caps, length 1.8" (4.6 cm). Longer sleeves 3" are available. Cap with rubber seal is very flat as to not disturbe foot traffic during acclimation times. |  |
| C-M | Case The black hard-shell case comes with a handle and a foam insert for protection. Designed to fit any Ligno moisture meter with Electrode E12. Size: 13.5" x 8" x 3.5" (35 x 20.3 x 9cm) |  |
| E12 BNC-C | The Electrode E12 is equipped with a slide hammer to insert and extract the teflon-coated pins. A BNC connector is mounted at the electrode head to connect the cable. The BNC cable for connecting the Electrode to the moisture meter is included in item E12-B. |  |
The Package V2-KM includes the Ligno-VersaTec with the E-12 slide hammer for using pin mode and the basic necessities for RH concrete moisture testing. It can be up-graded by adding the E-14 electrode.
Applications
Before installing resilient floor coverings, the moisture in concrete slabs should be tested to avoid floor covering failure. The floor covering industry recommends the RH in-situ probe method for concrete moisture testing
Advantages
The versatile, accurate Ligno-VersaTec incorporates multiple functions and delivers absolute reliability for many years of usage. It is your best choice for a pin - pinless - RH combination meter.
Pin and pinless, dual-depth mode 1/4 ” and 3/4"-Microprocessor-based circuitry assures calibration stability and accuracy for the life-time of the meter. The calibration is internally -checked and adjusted before each reading in pin and pinless mode.-Pinless mode allows lower readings in hard woods than pin meters. For a complete list of specs click Ligno-VersaTec meter description.
RH mode for in-situ concrete moisture testing -Meter indicates RH, Temp, DPT, GPP. -The number 134 on the screen is an individual probe number to give the customer an easy way to identify RH BluePeg Probes especially if several probes are in use for testing concrete. Probe numbers rotate through 001-999. -The meter has a HOLD function, to use when the display is not visible during measurements, and to use when scrolling through RH, T, GPP, DPT to obtain correlating sets of values.
