mini-Ligno S/DC Moisture Meter Kit with E12 Electrode

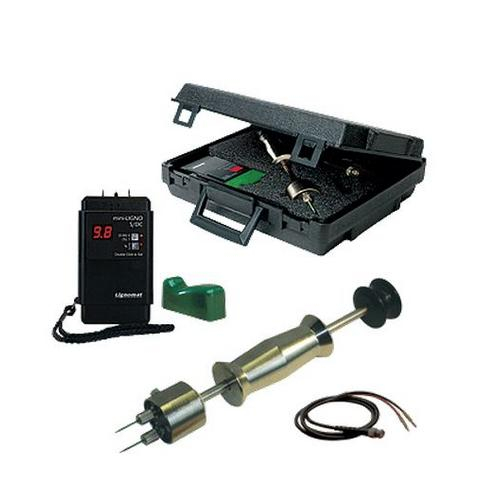

Includes:
- mini-Ligno S/DC moisture meter
- Case
- 1 Electrode E12
- 1 pair pins each DZ 1" and DA 1.5"
- 1 mini-BNC Cable
Applications
For inspection, construction and restoration jobs. To check hardwood floors and subfloors, structural lumber, etc. For tracking moisture conditions within the building envelope.
Advantages

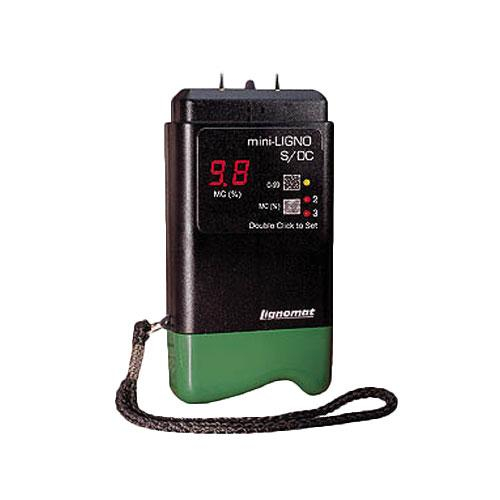

The mini-Ligno S/DC moisture meter measures wood, has a percentage scale for drywall and a reference scale for other building materials. Using the Electrode E12 allows accurate surface and core measurements with insulated pins up to 2" deep. The sliding hammer electrode is still considered the industry standard for quality control.
Moisture Meter Features:
- Microprocessor-based circuitry assures calibration stability - and accuracy for the life-time of the meter. The calibration is - internally checked and adjusted before each reading.
- Measuring range is low enough to check hardwood floors (6%).
- Measuring range is high enough to evaluate wet lumber (45%).
- Integral pins and connector for external cable built-in
4 Correction settings:
- 2 wood groups for soft and hardwoods and panel products
- 1 Percentage scale for drywall
- 1 Reference scale for concrete and other materials
Fast, one-hand operation. Unique shape fits comfortable in your hand when measuring. Pocket-sized. Strap keeps meter handy and safe from being dropped. Green cap serves as gun-type grip for easy probe insertion and covers the pins during transportation.
Electrode E12 is equipped with a slide hammer to insert and extract the teflon-coated pins. A BNC connector is mounted at the electrode head to connect the cable. The cable is detachable and included in the package.
Electrode E12 plus 1 pair DZ pins and 1 pair DA pins. Weight 8 oz (260g). Length without pins 6" (15cm).
mini-BNC cable connects Electrode E12 to mini-Ligno DX/C mini-BNC cable, standard length 3ft (0.9m).
The black hard-shell case comes with a handle and a foam insert for protection. Designed to fit any mini-Ligno with Electrode E12. Size: 13.5" x 8" x 3.5" (35 x 20.3 x 9cm.
