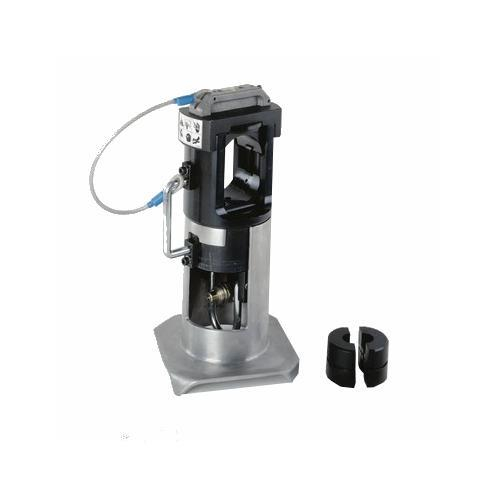

Buy Greenlee RK6040, Crimper, 60 Ton

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Ideal tool for use in substation and transmission construction
Accepts Burndy L dies and Alcoa 6000 Series crimping dies
After completing a connection, the top of the head easily swivels 90° and can be lifted from the tool to remove the connector
Removing the tool from the stand exposes a lifting eye for when the tool must be used above ground level
RK6040 requires 10,000 psi (700 bar) single-acting hydraulic power source
DK6040 requires 10,000 psi (700 bar) double-acting hydraulic power source
Equipped with 3/8 IN screw type hydraulic couplers
Includes steel carrying case with storage space for dies

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	For Use In Substation And Transmission Construction
Capacity	300 -2000 KCMIL Copper Stranded Code Cable, 250 - 2000 KCMIL Aluminum Stranded Code Cable, 1/0 AWG - 1000 KCMIL Copper Tension Sleeves, 1/0 AWG - 2300 KCMIL Aluminum Tension Sleeves, 1/0 AWG - 2156 (Bluebird) KCMIL ACSR Tension Sleeves, 4/0 AWG - 2500 KCM
Crimping Force	20000.000 Lb (530.000 KN) At 10000 PSI
Height	7.000 IN (432.000 MM)
Includes	Steel Carrying Case With Storage Space For Dies
Oil Volume Required	0.75 PT (312 CC)
Operating Pressure	10000 PSI (700 BAR)
Type	Single Acting
Weight	45.000 LB (20.000 kg)
Width	6.000 IN (153.000 mm)

Application	For Use In Substation And Transmission Construction
Capacity	300 -2000 KCMIL Copper Stranded Code Cable, 250 - 2000 KCMIL Aluminum Stranded Code Cable, 1/0 AWG - 1000 KCMIL Copper Tension Sleeves, 1/0 AWG - 2300 KCMIL Aluminum Tension Sleeves, 1/0 AWG - 2156 (Bluebird) KCMIL ACSR Tension Sleeves, 4/0 AWG - 2500 KCM
Crimping Force	20000.000 Lb (530.000 KN) At 10000 PSI
Height	7.000 IN (432.000 MM)
Includes	Steel Carrying Case With Storage Space For Dies
Oil Volume Required	0.75 PT (312 CC)
Operating Pressure	10000 PSI (700 BAR)
Type	Single Acting
Weight	45.000 LB (20.000 kg)
Width	6.000 IN (153.000 mm)

Note: Please read description carefully. Do not base your order on the picture presented.
