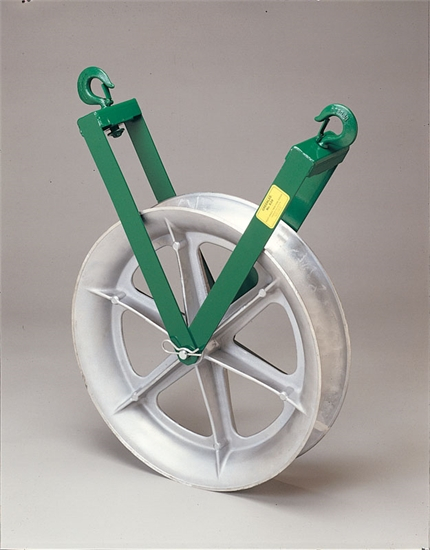

Greenlee 17265 639 Right-Angle Twin Yoke Sheave

Greenlee 639 right-angle twin yoke sheave is a utility created for application in cable pulling procedures. The hook sheave facilitates the overall process by helping to change the direction of a cable or rope during the installation in a raceway or conduit. The given item also allows users and puller operators to stand away from the high-tension line for it is capable of changing the direction of the puller tailing rope.

Benefits

• can be used in tandem with certain pullers with max. pulling force of 4,000 lbs and less;
• possesses durable welded yokes capable of fitting various setups due to the independent rotation;
• min. radius – 9-13/16";
• closure-type hook with an opening of 1" is made of forged steel;
• the sheave is 5" in width and possesses self-lubricating bearings.

Includes

• sheave pin – 1 (17266);
• sheave pin clips – 2 (50302);
• sheave – 1 (15364);
• sheave bushings – 2 (16798);
• yoke frame – 2 (17299).
