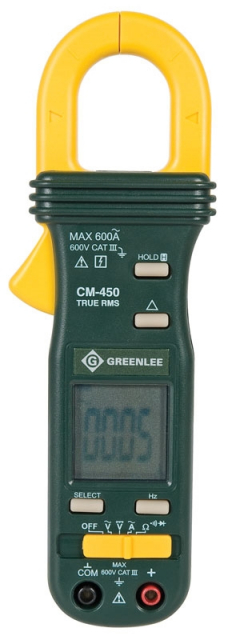

Greenlee CM-450 – is a Digital Clamp-on Meter – a handheld true RMS-reading testing/measuring device able to perform measurements/tests up to 600 amps of alternating current, on top of calculating AC/DC voltages, frequencies, and resistance; moreover – these gadgets also check diodes as well as verify continuity.

The package includes: the clamp meter itself, one standard/common button cell and test leads.

Features:

AC amperages, AC/DC voltages measuring.
True RMS for the extremely precise measurements where harmonics are present.
Fast, effortless operation/exploitation.
Automatic power off to prolong the life of a cell.
Resistance/Frequency measurements.
Audible continuity/diode testings.
Data-hold to capture measurements.
4K-count LCD.
Lifetime-Limited Warranty.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Amperage Measurement	40, 400, 600 A AC
Display	3-3/4-digit LCD (4000 maximum reading)
Jaw Opening	1.020"
Resistance Measurement	400Ω
	4, 40, 400kΩ
	4, 40MΩ
Voltage Measurement	4, 40, 400, 600 V AC
	4, 40, 400, 600 V DC
	400 mV
Sampling Rate	3 per second
Overrange Indication	“OL” appears on the display
Maximum Conductor Diameter	26 mm (1.02")
Measurement Category	Category III, 600 V
Temperature Coefficient	0.15 x (specified accuracy) per °C below 18 °C or above 28 °C
Operating Conditions	At 0% ≤ 80% RH: 5 °C to 31 °C (41 °F to 86 °F)
	Decreasing linearly to 50% RH at 40 °C (104 °F)
	Altitude: 2000 m (6500') maximum
	Indoor use only
Storage Conditions	-20 °C to 60 °C (-4 °F to 140° F), 0% to 80% relative humidity with battery removed
Pollution Degree	2
Standard	CAT III, C/US UL Listed, CE
Type	AC, TRMS
Battery	3 V standard button battery (IEC-CR2032; ANSI-NEDA-54004LC)

Product Details

Amperage Measurement	40, 400, 600 A AC
Display	3-3/4-digit LCD (4000 maximum reading)
Jaw Opening	1.020"
Resistance Measurement	400Ω
	4, 40, 400kΩ
	4, 40MΩ
Voltage Measurement	4, 40, 400, 600 V AC
	4, 40, 400, 600 V DC
	400 mV
Sampling Rate	3 per second
Overrange Indication	“OL” appears on the display
Maximum Conductor Diameter	26 mm (1.02")
Measurement Category	Category III, 600 V
Temperature Coefficient	0.15 x (specified accuracy) per °C below 18 °C or above 28 °C
Operating Conditions	At 0% ≤ 80% RH: 5 °C to 31 °C (41 °F to 86 °F)
	Decreasing linearly to 50% RH at 40 °C (104 °F)
	Altitude: 2000 m (6500') maximum
	Indoor use only
Storage Conditions	-20 °C to 60 °C (-4 °F to 140° F), 0% to 80% relative humidity with battery removed
Pollution Degree	2
Standard	CAT III, C/US UL Listed, CE
Type	AC, TRMS
Battery	3 V standard button battery (IEC-CR2032; ANSI-NEDA-54004LC)
