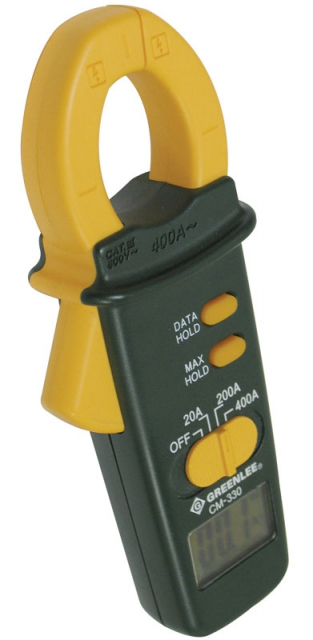

The Greenlee CM-330 Clamp-on Ammeter is a hand-held testing device capable of measuring up to 400 amps of alternating current.

Includes

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Amperage Measurement	20, 200, 400 A AC
Display	3-1/2-digit LCD (1999 maximum reading)
Sampling Rate	2.5 per second
Overrange Indication	“OL” appears on the display
Jaw Opening	30 mm (1.18")
Maximum Conductor Diameter	27 mm (1.06")
Measurement Category	Category III, 600 V
Standard	CAT III, C/US UL Listed, CE
Temperature Coefficient	0.2 x (specified accuracy) per °C below 18 °C or above 28 °C
Operating Conditions
0% to 80% Relative Humidity	0 °C to 30 °C (32 °F to 86 °F)
0% to 75% Relative Humidity	30 °C to 50 °C (86 °F to 112 °F)
Altitude	2000 m (6500') maximum
Indoor use only
Storage Conditions	-20 °C to 60 °C (-4 °F to 140° F), 0% to 80% relative humidity. Remove battery
Pollution Degree	2
Battery	9-Volt battery (NEDA 1604, JIS 006P or IEC 6LF22)

Amperage Measurement	20, 200, 400 A AC
Display	3-1/2-digit LCD (1999 maximum reading)
Sampling Rate	2.5 per second
Overrange Indication	“OL” appears on the display
Jaw Opening	30 mm (1.18")
Maximum Conductor Diameter	27 mm (1.06")
Measurement Category	Category III, 600 V
Standard	CAT III, C/US UL Listed, CE
Temperature Coefficient	0.2 x (specified accuracy) per °C below 18 °C or above 28 °C
Operating Conditions
0% to 80% Relative Humidity	0 °C to 30 °C (32 °F to 86 °F)
0% to 75% Relative Humidity	30 °C to 50 °C (86 °F to 112 °F)
Altitude	2000 m (6500') maximum
Indoor use only
Storage Conditions	-20 °C to 60 °C (-4 °F to 140° F), 0% to 80% relative humidity. Remove battery
Pollution Degree	2
Battery	9-Volt battery (NEDA 1604, JIS 006P or IEC 6LF22)

Note: Please read description carefully. Do not base your order on the picture presented.
