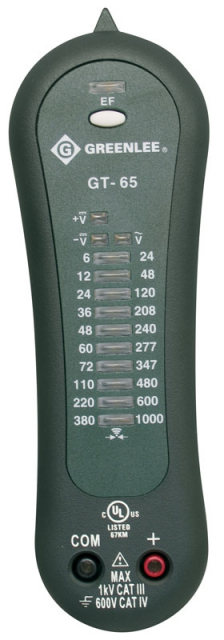

Greenlee 09025 GT-65 19-1000VAC/5-1000VDC Voltage Tester

  • Brand Greenlee
  • Part # 09025
  • Model # GT-65
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

The Greenlee GT-65 and GT-95 Voltage and Continuity Testers are intended to measure voltage and verify continuity. Each model has LEDs to indicate common voltages. They also have non-contact and single-probe voltage detection capability

Includes

  • Voltage Tester
  • (2) 1.5V AAA batteries
  • Test leads

Features

  • AC/DC voltage and polarity measurement
  • Continuity test and single probe detection of live conductors for added flexibility
  • Overvoltage warning gives user visual notification that voltage levels have exceeded 1000V AC/ 380V DC
  • Safe, non-contact voltage detection
  • Auto-hold automatically activates when tester is removed from voltage reading
  • Visual and audible continuity
  • Accessories included: (2) 1.5V AAA batteries and test leads
  • Lifetime Limited Warranty
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
Battery(2) 1.5 V AAA
Frequency45 - 65 Hz
StandardC/US UL Listed, CE Listed
Voltage Rating19 - 1000V AC
5 - 1000V DC
Continuity Test
Continuity Verification0 - 50 kΩ
Test Current (typical)0.7 µA
Open Circuit VoltageLess than 2.0 VDC
IndicationTone and LED
GFCI Test (for 120 V nominal circuits only - GFCI test is disabled above 132 V and below 80 V)
Test Current7.5 mA nominal at 120 V
Impedance16 kΩ nominal
Internal Load0.9 W @ 120 V
Operating/Storage Conditions–10 °C to 50 °C (14 °F to 122 ° F) 0% to 85% relative humidity
Altitude: 2000 m (6500') maximum
Pollution Degree: 2
Indoor use only
Remove batteries before storing
Measurement CategoriesCAT IV, 600 V / CAT III, 1000 V per UL 61010
Product Details
Battery(2) 1.5 V AAA
Frequency45 - 65 Hz
StandardC/US UL Listed, CE Listed
Voltage Rating19 - 1000V AC
5 - 1000V DC
Continuity Test
Continuity Verification0 - 50 kΩ
Test Current (typical)0.7 µA
Open Circuit VoltageLess than 2.0 VDC
IndicationTone and LED
GFCI Test (for 120 V nominal circuits only - GFCI test is disabled above 132 V and below 80 V)
Test Current7.5 mA nominal at 120 V
Impedance16 kΩ nominal
Internal Load0.9 W @ 120 V
Operating/Storage Conditions–10 °C to 50 °C (14 °F to 122 ° F) 0% to 85% relative humidity
Altitude: 2000 m (6500') maximum
Pollution Degree: 2
Indoor use only
Remove batteries before storing
Measurement CategoriesCAT IV, 600 V / CAT III, 1000 V per UL 61010
