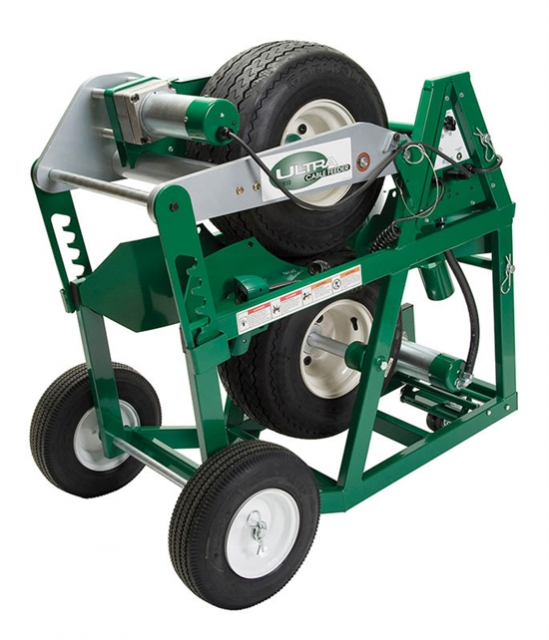

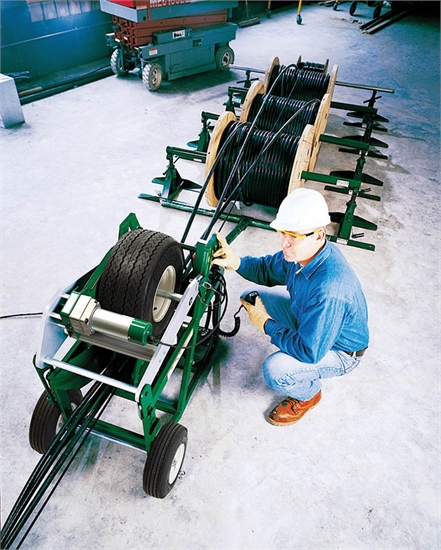

The Greenlee Ultra Cable Feeder is intended to pull cable off of reels to allow feeding the cable into conduit or cable tray.

The Ultra Cable Feeder is not intended to pull cable or rope through conduit.

Features

Dividers prevent tangling of cables
Ground Cable Separator ensures traction on smaller diameter cable
Variable speed control to match the speed of most cable pullers
Quick Squeeze Adjustment accommodates individual cables from 6.5 mm – 89 mm (1/4" – 3-1/2") diameter
Top loading or side loading
Hand-held pendant control switch
Optional foot control switch
Twin drive traction wheels for optimum pulling power
Low-speed DC motors provide quiet operation
Efficient permanent-magnet motor design requires little power
Maintenance-free chain drive

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Power Supply	115 VAC, 15 amps, 60 Hz
Speed	4-36 feet per minute (1.2-11 meters per minute)
Maximum Tractive Force
Single Cable	200 lbs. (.9 kN)
All Cables	800 lbs. (3.5 kN)
Cable Capacity	8 x 250 MCM(120 mm2)
	6 x 500 MCM (240 mm2)
	5 x 750 MCM (300 mm2)
Reel Weight Capacity	25,000 lbs. total (11,300 kg)
Size	41" L x 27.5" W x 37.5" H (1040 mm x 699 mm x 953 mm)
Weight	285 lbs. (130 kg)
Tire Pressure	50psi (2.4 bar)

Power Supply	115 VAC, 15 amps, 60 Hz
Speed	4-36 feet per minute (1.2-11 meters per minute)
Maximum Tractive Force
Single Cable	200 lbs. (.9 kN)
All Cables	800 lbs. (3.5 kN)
Cable Capacity	8 x 250 MCM(120 mm2)
	6 x 500 MCM (240 mm2)
	5 x 750 MCM (300 mm2)
Reel Weight Capacity	25,000 lbs. total (11,300 kg)
Size	41" L x 27.5" W x 37.5" H (1040 mm x 699 mm x 953 mm)
Weight	285 lbs. (130 kg)
Tire Pressure	50psi (2.4 bar)

Note: Please read description carefully. Do not base your order on the picture presented.
