Buy Greenlee 02407, NC-6-38MF Non-Conductive Hydraulic Hose

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

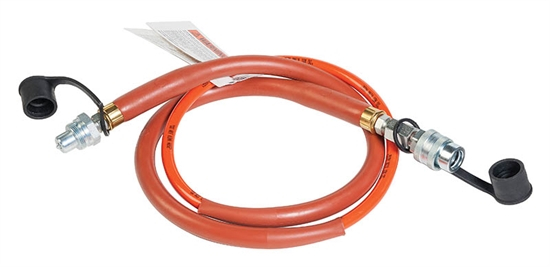

Greenlee, 02407, NC-6-38MF 6ft Non-Conductive Hydraulic Hose with 3/8" Male/Female Threaded Coupler

Includes

Features

SAE J517 non-conductive hose construction.
Less than 50 micro-amperes leakage when subjected to 100,000 volts/ft for 5minutes
UV resistant cover
Spiraled high tensile aramid fiber reinforcement

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color	Orange polyurethane non-perforated cover, Non-conductive marking and color code
Connection	3/8" NPT screw-type male and female
Diameter	3/16" (4.8mm)
Length	6 foot
Material	Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube
Pressure Rating	40,000 PSI pressure burst rating
Type	Non-Conductive
Working Pressure	10,000 PSI max working pressure

Color	Orange polyurethane non-perforated cover, Non-conductive marking and color code
Connection	3/8" NPT screw-type male and female
Diameter	3/16" (4.8mm)
Length	6 foot
Material	Spiraled high tensile aramid fiber reinforcement, Nylon-lined core tube
Pressure Rating	40,000 PSI pressure burst rating
Type	Non-Conductive
Working Pressure	10,000 PSI max working pressure

Note: Please read description carefully. Do not base your order on the picture presented.
