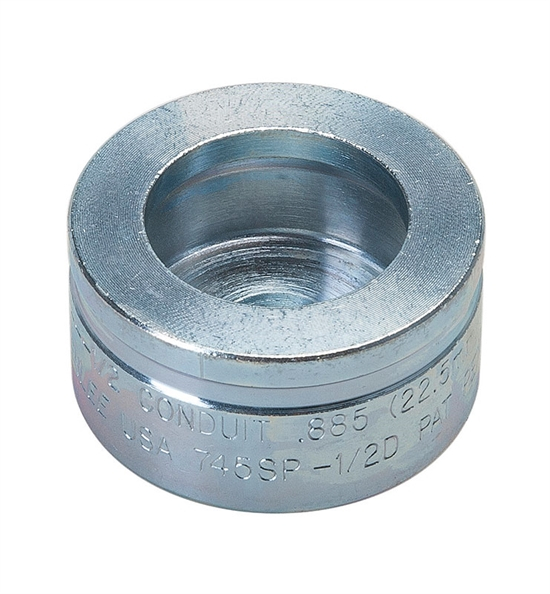

Greenlee, 01662, 745SP-1/2D Speed Punch 1/2" Knockout Die for Stainless Steel

Features

Application: For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Capacity Mild Steel	Max: 10 gauge (3.0 mm).
Capacity Stainless Steel	Max: 12 gauge (2.5 mm).
Diameter	Actual hole size: 0.885" (22.5 mm)
Draw Stud	Std. Draw Stud: 7212SP24 (3/8" X 3.82")
Draw Studs	Alt. Draw Stud (Long): 7212SP22 (3/8" x 4.69") - For use with 746 Hydraulic Ram.
Driver	Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered Driver up to max. 12 ga. stainless steel).
Material	Carbon-Alloy Steel, Zinc Plated
Minimum Pilot Hole	1/2" (12.7 mm)
Operation	Must be used with other Speed Punch® System components.
Type	Knockout Punches
Weight	0.25 lbs. (0.11 kg)

Capacity Mild Steel	Max: 10 gauge (3.0 mm).
Capacity Stainless Steel	Max: 12 gauge (2.5 mm).
Diameter	Actual hole size: 0.885" (22.5 mm)
Draw Stud	Std. Draw Stud: 7212SP24 (3/8" X 3.82")
Draw Studs	Alt. Draw Stud (Long): 7212SP22 (3/8" x 4.69") - For use with 746 Hydraulic Ram.
Driver	Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered Driver up to max. 12 ga. stainless steel).
Material	Carbon-Alloy Steel, Zinc Plated
Minimum Pilot Hole	1/2" (12.7 mm)
Operation	Must be used with other Speed Punch® System components.
Type	Knockout Punches
Weight	0.25 lbs. (0.11 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
