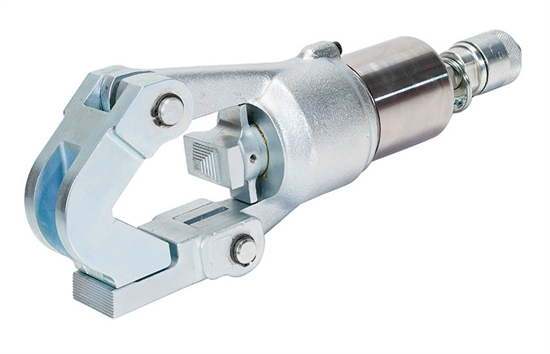

Greenlee, 01565, RK12ID Single Acting Remote Powered 12 Ton Dieless Crimping Tool

The RK12ID Remote Dieless Crimping Tool is a dieless crimping tool intended to crimp aluminum and copper connectors onto electrical cable

Includes

Features

Dieless indent style crimping head does not require interchangeable crimping dies.
Flip-top crimping head allows crimping of 4 AWG - 1000 kcmil copper or 6 AWG - 1000 kcmil aluminum with no
dies to change.
Equipped with 3/8" male screw-type coupler for quick attachment.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	Remote Dieless Crimping Head (10K PSI)
Capacity	4 AWG - 1000 kcmil copper or 6 AWG -1000 kcmil aluminum
Connector Type	3/8" male screw-type coupler
Crimp Cycle Time	3 seconds
Crimping Capacity	Refer to crimping chart in instruction manual
Crimping Force	24,000 (106 kN)
Height	2" (51mm)
Overall Length	13" (330mm)
Weight	9.75 lbs. (4.42kg)
Width	3.75" (95mm)

Application	Remote Dieless Crimping Head (10K PSI)
Capacity	4 AWG - 1000 kcmil copper or 6 AWG -1000 kcmil aluminum
Connector Type	3/8" male screw-type coupler
Crimp Cycle Time	3 seconds
Crimping Capacity	Refer to crimping chart in instruction manual
Crimping Force	24,000 (106 kN)
Height	2" (51mm)
Overall Length	13" (330mm)
Weight	9.75 lbs. (4.42kg)
Width	3.75" (95mm)

Note: Please read description carefully. Do not base your order on the picture presented.
