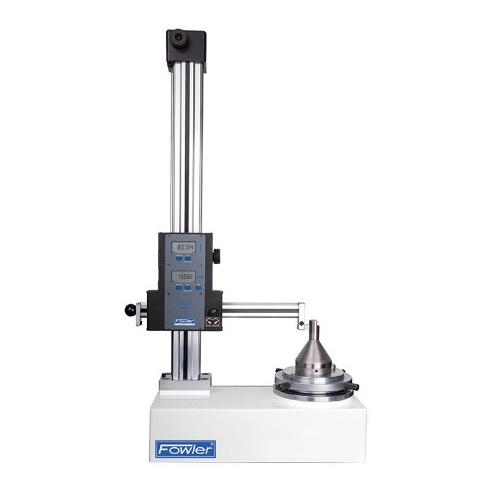

Fowler 54-188-300-0 Tool Presetter with Precision Spindle, ISO 50

Features:

• Less than 2 um concentricity error
• No need of additional setting master due to integrated calibration point on the spindle for both axis
• Counter balanced measuring carriage
• Constant measuring force of horizontal measuring arm ensures high accuracy
• High precision Sylvac measuring system
• MIN/MAX function
• 2 Reference indications

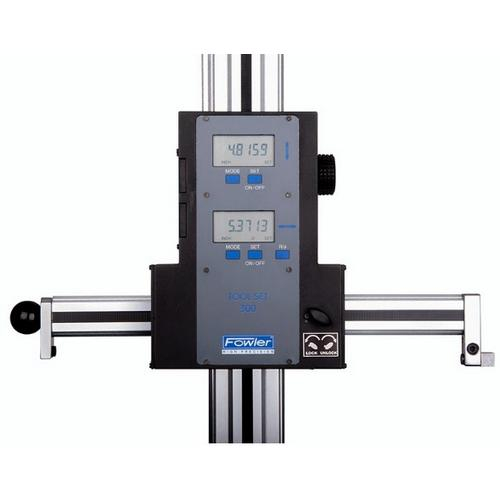

• Measuring value display
• Function for PRESET value and TOLERANCE value inputs
• Tolerance mode indication
• Measuring unit (MM/INCH) indication
• Low battery warning indication
• Display hold
• Output - OPTO RS232 for each axis
• Floating zero function
• Carbide measuring insert
• Accepts measuring probes with 8mm shank

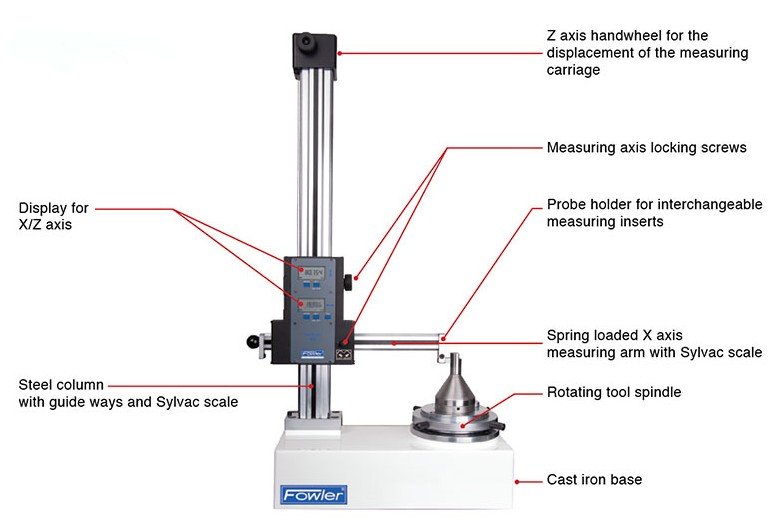

Quick checking of heights and diameters (radius) of all kinds of tools such as ISO, BT, HSK, VDIA etc. is guaranteed by a fixed precise steel measuring column with displacement devices in coordinates (X/Z) and constant measuring force.
