EE-Tools, TOPMAXII, Expert Single Socket Universal Device Programmer for PC USB

TopMaxII is a high-speed universal device programmer for USB 1.1/2.0/3.0 PC-interface. It programs a 64Mbit (AM29LV641) flash memory in 42 seconds. This is a true low-price production oriented system. The TopMaxII meets the demands of today's programming solution for lab and production line applications.

Includes:

Power Cord
USB Cable
Software CD and User's Guide

Product Highlights:

High-speed Universal Programmer
Support USB 1.1/2.0 Port in PC

Key Features:

Software:

Auto search device select function supports E(E)PROMs & Microcontrollers.
Device insertion test identifies improperly inserted device before programming.
Gang Program Mode allows programmers up to 8 units as concurrent programming system. (External START key allows TopMaxII to operate in stand-alone mode)
Check for incorrect device insertion, backward, incorrect position, and poor pin contact.
Device Operations: Read,Blank check, Program, Verify, Checksum, Data compare, Security, Auto(blank check- program-verify), Option Bit program.
Display programming parameters and optional bit information on the screen.
Set device/buffer address ranges before programming devices.
Extensive on-line F1 help system provides text and graphics.
User-changeable programming parameters.
Built-in editor for both buffer date and test vectors.
Support Binary and all hex files (POF and JEDEC, Intel Hex, Motorola S Records, Tekhex, straight hex, hex-space, Extended Tekhex, and others, automatic file type recognition) with Load, Edit, and Save commands.

Hardware:

One on-board FPGA for extremely fast communication.
Supports real low-voltage support : 5, 3.3, 2.7,1.8, 1.5 volt for programming power.
Detects all pin locations for poor or damaged pin contacts.
External START key allows production programming mode.
Internal universal power supply,110-240 VAC (no separate power supply required in foreign country).
Current limiting protects hardware circuit from improperly inserted or defective chips and operation errors.

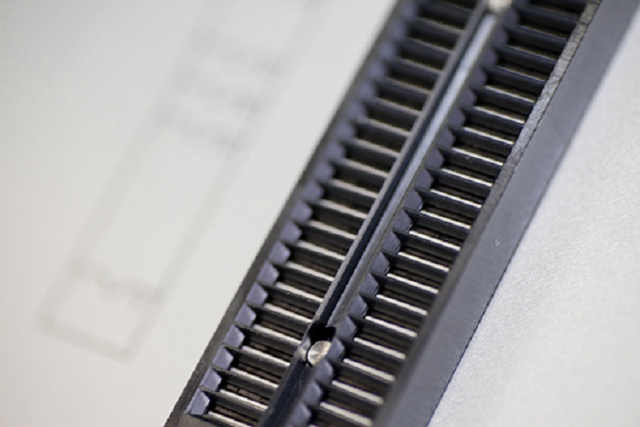

Standard 48-pin ZIF(Zero Insertion Force) socket accepts both 300mil and 600 mil DIP devices.
True universal pin driver hardware.

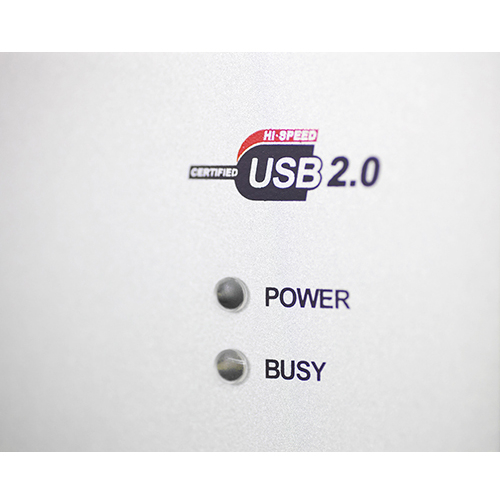

Support a high-speed USB2.0 port for PC interface.
Support a standard IEEE-1149.1 (JTAG) port
Hardware diagnostic program exams all socket-pin drivers before using programmer.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Devices Programmed

M25Pxx, MX25Lxx, S25LFxx, SST25VFxxx
NAND Flash Memory Samsung K9Kxxx, K5Axxx, K5Fxxx, M-System MDOC-256 / 512 / 1G / 2G Toshiba TC58xxx St-Micro NAND01G / 02G / 04G
28Fxxx, 29Fxxx, 38Fxxx, 29LVxxx, 26LVxxx, 29GLxxx, 29ALxxx, 29Wxxx, 36xxx, 32HFxxx, 34VFxxx, 37VFxxx, 39SFxxx, 39VFxxx, 45LFxxx, 49LFxxx, 50FWxxx
27xxx and 27Cxxx series, from 16 Kbit to 32Mbit with 8-bit/16-bit
EEPROM 27Exxx, 28xxx , and 28Cxxx series
256 Kbit to 32 Mbit 28Fxxx, 29Fxxx, 29Cxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series (1.5, 1.8, 2.7, 3.3, 5.0, or 12 Volt)
24Cxx, 24Fxx, 25Cxx, 59Cxx, EPC1/1213/1648, and 93Cxx
ispLSI(10/20)xx, ispGAL22V10, ispGDS1(2)x, LC40(41)xx M4Axxx series
PALs, PALCEs, GALs 16V8, 20V8, 22V10, 20RA10, 26V12 series
DS12xx, DS13xx, DS15xx, DS16xx series
PEELs 153, 173, 253, 273, 18CV8, 20CG10 series
EPLDs PLCxxx, PLSxxx, PLUSxxx, Epxxx, EPCxxx, EPMxxx, PLDxxx, 5Cxxx, 85Cxxx series
ATF16/20/22Vxx, ATV750/1500/2500
MACH1xx/2xx/4xx, and xxx-SP series
MAX5000, MAX7000 series
8741, 8742, 8748, 8749 series
87C51/52, -FA, -FB, -FC, '528, '652, '654, '54, 89Cxx, 89Sxx, 89LVxx, 89Cxxxx, DCF85xx, 85(87/89)LPCxxx, PXAxx series 87C751/752
ST62xx, ST7xx, ST9xx, ST10xx series
XC17Sxxx, 17Vxxx, 72xx, 73xx, XCF01 / 02 / 04 series
PIC12Cxxx, PIC16xxx, 17xxx, 18xxx series
MC68705, MC68HC705, MC68HC711, MC68HC908, MC9S08
Z86Cxx, Z86Exx series

Devices Tested

TTL type : 54, 74(S, LS, L, H, HC) series
CMOS type : 40, 45 series
Dynamic Memory : 4164 - 1MBit
Static Memory : 6116 - 6256
User definable test pattern generation

System Requirements

TYPE: 386, 486, Pentium or compatibles. PS/2, Portable(notebook) computer.
A hard disk drive (4 Megabytes) is recommended for software installation / set up.
PC RAM size: 512K of conventional memory
I/O PORT: USB 1.1/2.0/3.0 port
OS: WINDOWS 95 / 98 / 2000 / NT / XP / 7 / 8 or greater

Dimensions

11"L x 7.25"W x 2.5" H

Weight

3.25 lbs

Built-in Socket

Textool 48 pin ZIF standard.

Safety Standard

CE compliant
