Buy Burndy YS47A1, 10016388 Aluminum Compression Splice, 1750 kcmil, (Pack of 6 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

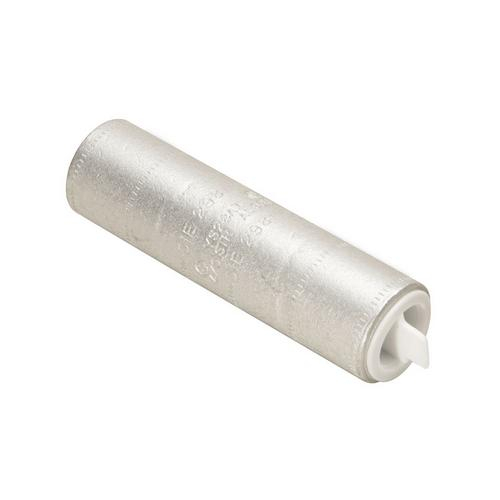

Aluminum Compression Splice, 1750 kcmil, 8.31" Splice Length, Long Barrel, Tin Plated.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Connector Type	Splice
Die Index	587
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Long
Material	Aluminum
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Dimension - B Length fraction	4 in
Dimension - B Length inch	3.99 in
Dimension - L Length Overall mm	211 mm
Dimension - Length Overall inch	8.31 in
Dimension - Outside Diameter inch	2.44 in
Dimension - Strip Length inch	4-3/8 in
Length	8.31 in
Outside Diameter	2.44 in
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Connector Type	Splice
Die Index	587
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Long
Material	Aluminum
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Dimension - B Length fraction	4 in
Dimension - B Length inch	3.99 in
Dimension - L Length Overall mm	211 mm
Dimension - Length Overall inch	8.31 in
Dimension - Outside Diameter inch	2.44 in
Dimension - Strip Length inch	4-3/8 in
Length	8.31 in
Outside Diameter	2.44 in
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000

Note: Please read description carefully. Do not base your order on the picture presented.
