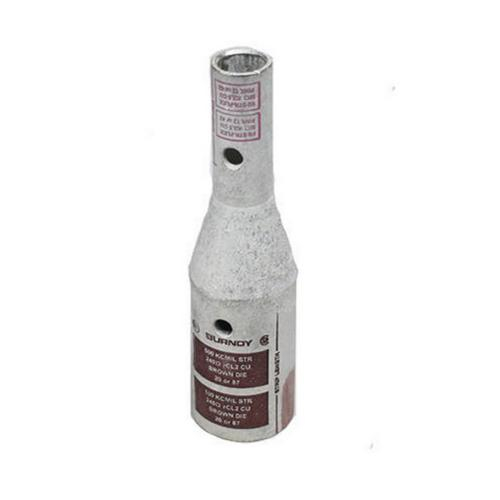

Electro-tin plated copper compression reducer/splice, with a through hole for cable inspection on each side, for 350 Kcmil wire.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Connector Type	Splice
Die Index	19;L80
Die Index Run Side	19;L80
Die Index Tap Side	19;L80
Feature - Barrel Style	Skived
Feature - Barrel Type	Standard
Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Dimension - B Length inch	1.60 in
Dimension - L Length Overall mm	98.3 mm
Dimension - Length BB inch	1.60 in
Dimension - Length Overall inch	3.87 in
Dimension - Strip Length inch	1.60
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Connector Type	Splice
Die Index	19;L80
Die Index Run Side	19;L80
Die Index Tap Side	19;L80
Feature - Barrel Style	Skived
Feature - Barrel Type	Standard
Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Dimension - B Length inch	1.60 in
Dimension - L Length Overall mm	98.3 mm
Dimension - Length BB inch	1.60 in
Dimension - Length Overall inch	3.87 in
Dimension - Strip Length inch	1.60
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000

Note: Please read description carefully. Do not base your order on the picture presented.
