Package Quantity: Pack of 100 pcs

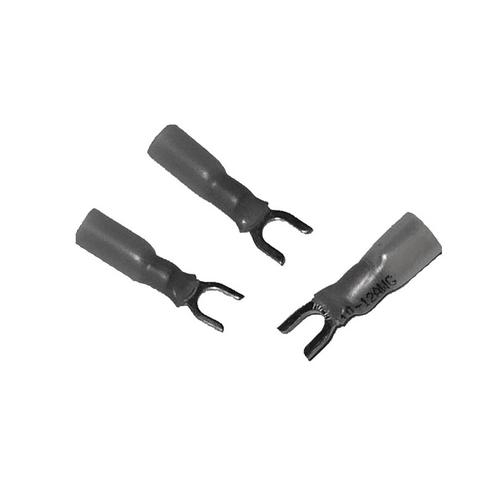

Cu Heat Shrink Terminal, Block Fork, 18-22 AWG, #8-10 Stud, 1.20" L, 0.31" W, Brazed Seam, Tin Plated, Red (Insul Color).

Made From Pure Copper, Annealed For Maximum Strength, Color-Coded, Imprinted With Wire Size, Serrated Barrels Offer Maximum Wire Contact And Tensile Strength, Electro Tin Plated For Corrosion Resistance, Wire Strip Length 5/16 in, Finish: Electro-Tin Plated.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Application	For Use On Copper Conductor
Connector Type	Terminal
EU RoHS Indicator	Yes
Insulation	Y
Insulation Type	Heat Shrink
Material	Copper
Physical Attribute - Tongue Type	Block Fork
Plated	Y
Plating Type	Tin
Type	YHS, Heat Shrink

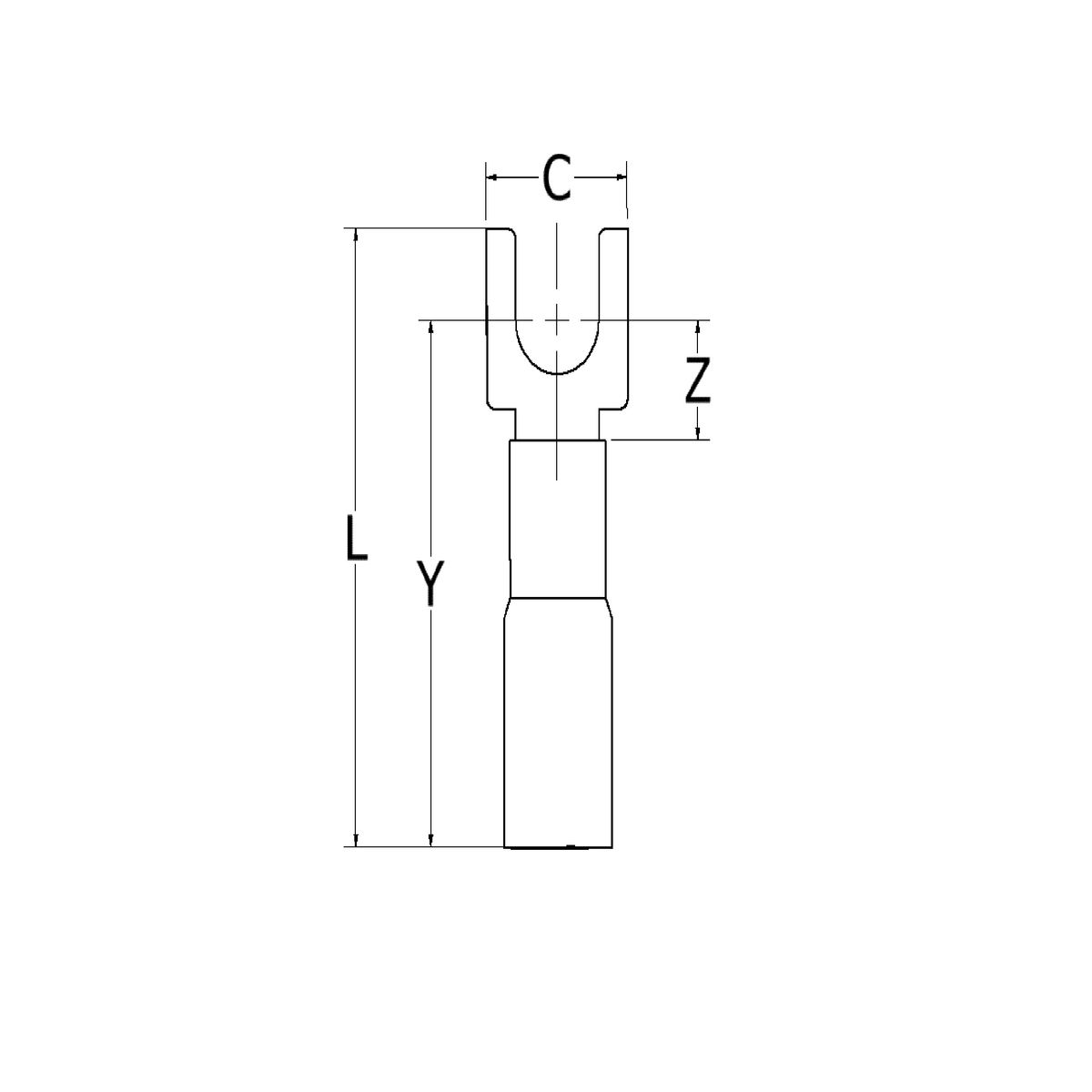

Dimension - L Length Overall mm	30 mm
Dimension - Length Overall inch	1.20 in
Dimension - Pad Width inch	0.31 in
Dimension - Strip Length inch	7/32 in
Dimension - Stud Size inch	#8; #9; #10
Dimension - Z inch	0.32 in
Conductor Type	CU C Solid-SizeCU C Str-Size

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Application	For Use On Copper Conductor
Connector Type	Terminal
EU RoHS Indicator	Yes
Insulation	Y
Insulation Type	Heat Shrink
Material	Copper
Physical Attribute - Tongue Type	Block Fork
Plated	Y
Plating Type	Tin
Type	YHS, Heat Shrink
Dimension - L Length Overall mm	30 mm
Dimension - Length Overall inch	1.20 in
Dimension - Pad Width inch	0.31 in
Dimension - Strip Length inch	7/32 in
Dimension - Stud Size inch	#8; #9; #10
Dimension - Z inch	0.32 in
Conductor Type	CU C Solid-SizeCU C Str-Size

Note

Note: Please read description carefully. Do not base your order on the picture presented.
