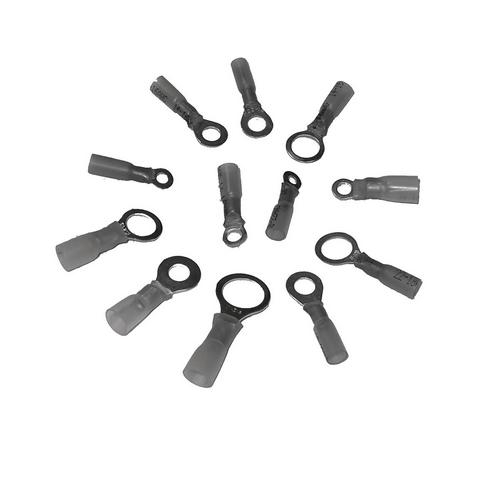

Buy Burndy YHSA10K14, 10094992 Ring Tongue Terminal

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 100 pcs

Cu Heat Shrink Terminal, Ring Tongue, 10-12 AWG, 1/4" Stud, 1.45" L, 0.56" W, Serrated bbl, Tin plated, For Use On Cu Cond.

Made From Pure Copper, Annealed For Maximum Strength, Color-Coded, Imprinted With Wire Size, Serrated Barrels Offer Maximum Wire Contact And Tensile Strength, Electro Tin Plated For Corrosion Resistance, Wire Strip Length 5/16 IN, Finish: Electro-Tin Plated.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Application	For Use On Copper Conductor
Connector Type	Terminal
EU RoHS Indicator	Yes
Insulation	Y
Insulation Type	Heat shrink
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Y
Plating Type	Tin
Type	YHS, Heat Shrink
Dimension - B Length fraction	2/9 in
Dimension - B Length inch	0.22 in
Dimension - Hole Size fraction	1/4
Dimension - Hole Size inch	0.26 in
Dimension - Hole Size mm	7.00 mm
Dimension - L Length Overall mm	37 mm
Dimension - Length Overall inch	1.15 in
Dimension - N inch	0.15 in
Dimension - Pad Width inch	0.56 in
Dimension - Strip Length inch	5/16 in
Dimension - Stud Size inch	1/4 in
Conductor - Copper Str Size Range	12 str.- 10 str.
Conductor Type	CU C Str-Size

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Application	For Use On Copper Conductor
Connector Type	Terminal
EU RoHS Indicator	Yes
Insulation	Y
Insulation Type	Heat shrink
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Y
Plating Type	Tin
Type	YHS, Heat Shrink
Dimension - B Length fraction	2/9 in
Dimension - B Length inch	0.22 in
Dimension - Hole Size fraction	1/4
Dimension - Hole Size inch	0.26 in
Dimension - Hole Size mm	7.00 mm
Dimension - L Length Overall mm	37 mm
Dimension - Length Overall inch	1.15 in
Dimension - N inch	0.15 in
Dimension - Pad Width inch	0.56 in
Dimension - Strip Length inch	5/16 in
Dimension - Stud Size inch	1/4 in
Conductor - Copper Str Size Range	12 str.- 10 str.
Conductor Type	CU C Str-Size

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

Burndy YHSA10K14 10094992 Ring Tongue Terminal
