Buy Burndy YHN600, Compression Line H Tap, (Pack of 50 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 50 pcs

Options and Related Products

Range:: Range: 0.573" - 0.814" Run / 0.574" - 0.684" Tap

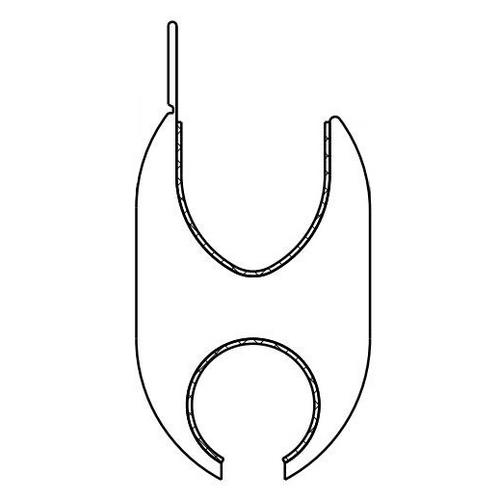

Burndy, YHN600, Compression Line H Tap, 0.573" - 0.814" Run / 0.574" - 0.684" Tap

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Die Index	N
Material	Aluminum
Plated	N
Plating Type	Unplated
Prefilled Oxide Inhibitor	Y
Dimension - Height fraction	2 in
Dimension - Height inch	2.00 in
Dimension - L Length Overall mm	89 mm
Dimension - Length Overall inch	3.50 in
Dimension - Width fraction	1-7/25 in
Dimension - Width inch	1.28 in
Dimension - Width mm	33 mm
Conductor - ACSR Cmpt Run	300 kcmil; 556.5 kcmil
Conductor - ACSR Cmpt Run Range	300 kcmil-556.5 kcmil
Conductor - ACSR Cmpt Tap	300 kcmil; 397 kcmil
Conductor - ACSR Cmpt Tap Range	300 kcmil-397 kcmil
Conductor - ACSR Str Run	266.8 (18/1) Waxwing kcmil; 266.8 (26/7) Owl kcmil; 266.8 (26/7) Partridge kcmil; 300.0 (26/7) Ostrich kcmil; 336.4 (18/1) Merlin kcmil; 336.4 (26/7) Linnet kcmil; 336.4 (30/7) Oriole kcmil; 397.5 (18/1) Chickadee kcmil; 397.5 (24/7) Brant kcmil; 397.5 (26/7) Ibis kcmil; 397.5 (30/7) Larkspur kcmil; 477.0 (18/1) Pelican kcmil
Conductor - ACSR Str Run Range	266.8 (18/1) Waxwing kcmil-477.0 (18/1) Pelican kcmil
Conductor - ACSR Str Tap	266.8 (18/1) Waxwing kcmil; 300.0 (26/7) Ostrich kcmil; 266.8 (26/7) Owl kcmil; 266.8 (26/7) Partridge kcmil; 336.4 (18/1) Merlin kcmil
Conductor - ACSR Str Tap Range	266.8 (18/1) Waxwing kcmil-336.4 (18/1) Merlin kcmil
Conductor - AL Str Run	250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Run Range	250 kcmil-500 kcmil
Conductor - AL Str Tap	250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil
Conductor - AL Str Tap Range	250 kcmil-350 kcmil
Conductor - Copper Solid Tap	336-400
Conductor - Copper Solid Tap Range	336-400
Conductor - Copper Str Run	250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Run Range	250 kcmil-500 kcmil
Conductor - Copper Str Tap	250 - 350
Conductor - Copper Str Tap Range	250 - 350
Certification - CSA Approved	No
Certification - ETL	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No
