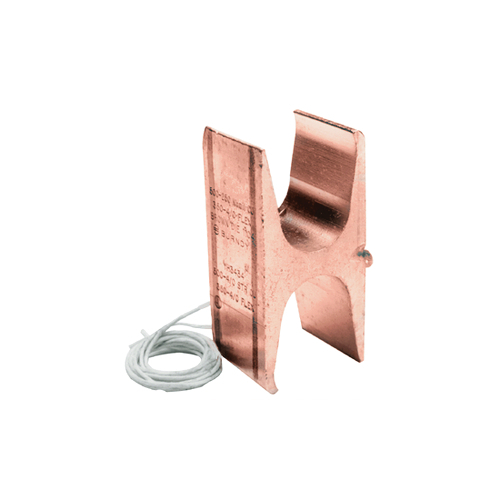

Burndy YH4434 10044316 Copper H-Tap Connector, (Pack of 50 pcs)

  • Brand Burndy
  • Part # YH4434
  • Model # 10044316
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:
Package Quantity
Pack of 50 pcs

Cu H-Tap Connector, 1000-750 kcmil, 777-750 kcmil Flex, 500-350 kcmil, 350 kcmil Flex, Tin plated.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Color CodeYellow
Connector TypeH-Tap
Die IndexKR
MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
TypeCompression Taps
Dimension - Height inch3.38 in
Dimension - L Length Overall mm25 mm
Dimension - Length Overall inch1.00 in
Dimension - Strip Length inch1-3/8
Dimension - Width fraction1.70 in
Dimension - Width inch3.50 in
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Flex G Run500 kcmil; 600 kcmil; 700 kcmil
Conductor - Copper Flex G Run Range500 kcmil-700 kcmil
Conductor - Copper Flex G Tap350 kcmil
Conductor - Copper Flex G Tap Range350 kcmil
Conductor - Copper Flex H Run700 kcmil
Conductor - Copper Flex H Run Range700 kcmil
Conductor - Copper Flex H Tap350 kcmil
Conductor - Copper Flex H Tap Range350 kcmil
Conductor - Copper Flex I Run500 kcmil; 550 kcmil; 600 kcmil; 700 kcmil
Conductor - Copper Flex I Run Range500 kcmil-700 kcmil
Conductor - Copper Flex I Tap350 kcmil
Conductor - Copper Flex I Tap Range350 kcmil
Conductor - Copper Flex K Run500 kcmil; 600 kcmil; 700 kcmil
Conductor - Copper Flex K Run Range500 kcmil-700 kcmil
Conductor - Copper Flex K Tap350 kcmil
Conductor - Copper Flex K Tap Range350 kcmil
Conductor - Copper Flex M Run500 kcmil; 600 kcmil; 700 kcmil
Conductor - Copper Flex M Run Range500 kcmil-700 kcmil
Conductor - Copper Flex M Tap350 kcmil
Conductor - Copper Flex M Tap Range350 kcmil
Conductor - Copper Str Run700 kcmil; 750 kcmil; 800 kcmil; 850 kcmil; 900 kcmil; 1000 kcmil
Conductor - Copper Str Run Range700 kcmil-1000 kcmil
Conductor - Copper Str Tap350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Tap Range350 kcmil-500 kcmil
Certification - CSA ApprovedYes
Industry Standard(s)UL467
Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusCM
UL ListedYes
Notes
