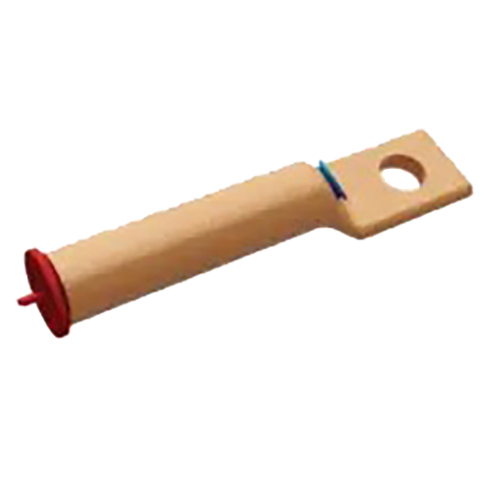

Buy Burndy YGA6CTC10, #10 Grounding Irreversible Compression Terminal, (Pack of 100 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 100 pcs

Features:

Irreversible compression Hylug™ ground terminal specifically designed for grounding applications
Each connector has an inspection probe hole to ensure proper cable insertion
UL467 Listed
Acceptable for direct burial in earth or concrete
UL486A Listed
Prefilled with Penetrox™ compound and strip sealed

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Color Code

Blue

Connector Type

Terminal

Die Index

7; 374

Material

Copper

Physical Attribute - Number of Crimps Required

Plated

Plating Type

Unplated

Trade Name

Hylug™

Type

Terminals

Dimension - B Length fraction

1-1/8 in

Dimension - B Length inch

1.12 in

Dimension - Bolt Hole Size inch

0.20 in

Dimension - Hole Size inch

0.21 in

Dimension - Hole Size mm

5 mm

Dimension - L Length Overall mm

48 mm

Dimension - Length Overall inch

1.89 in

Dimension - N inch

0.25 in

Dimension - Outside Diameter inch

0.29 in

Dimension - Pad Width inch

0.42 in

Dimension - Strip Length inch

1-3/16

Dimension - Stud Size fraction

1/2

Dimension - Stud Size inch

#10

Conductor - Copper Solid Size

Conductor - Copper Solid Size Range

Conductor - Copper Str Size

6 Sol./6 Str.

Conductor - Copper Str Size Range

6 Sol / 6 AWG

Conductor Type

Copper C Solid-Size
Copper C Str-Size

Certification - CSA Approved

Certification - ETL

Certification - UL Listed Direct Burial

Yes

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL 467
Direct Burial

Standards - Industry Standards Met

UL467; UL468A-468B

Standards - RoHS Compliance Status

UL Listed

Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Color Code

Blue

Connector Type

Terminal

Die Index

7; 374

Material

Copper

Physical Attribute - Number of Crimps Required

Plated

Plating Type

Unplated

Trade Name

Hylug™

Type

Terminals

Dimension - B Length fraction

1-1/8 in

Dimension - B Length inch

1.12 in

Dimension - Bolt Hole Size inch

0.20 in

Dimension - Hole Size inch

0.21 in

Dimension - Hole Size mm

5 mm

Dimension - L Length Overall mm

48 mm

Dimension - Length Overall inch

1.89 in

Dimension - N inch

0.25 in

Dimension - Outside Diameter inch

0.29 in

Dimension - Pad Width inch

0.42 in

Dimension - Strip Length inch

1-3/16

Dimension - Stud Size fraction

1/2

Dimension - Stud Size inch

#10

Conductor - Copper Solid Size

Conductor - Copper Solid Size Range

Conductor - Copper Str Size

6 Sol./6 Str.

Conductor - Copper Str Size Range

6 Sol / 6 AWG

Conductor Type

Copper C Solid-Size
Copper C Str-Size

Certification - CSA Approved

Certification - ETL

Certification - UL Listed Direct Burial

Yes

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL 467
Direct Burial

Standards - Industry Standards Met

UL467; UL468A-468B

Standards - RoHS Compliance Status

UL Listed

Yes

Note

Note: Please read description carefully. Do not base your order on the picture presented.
