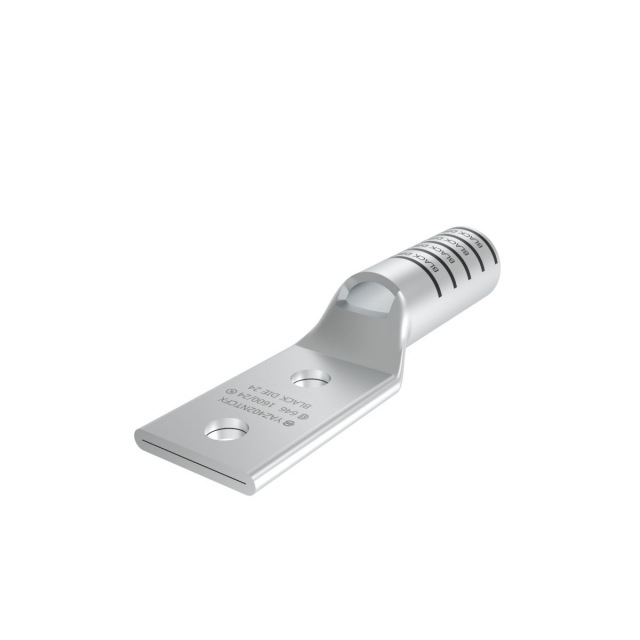

Burndy YAZ402NTCFX 25019239 Copper Compression Lug, 650 Kcmil, (Pack of 6 pcs)

Conductor Size: 650 Kcmil, Stud Size: 1/2", Stud Hole Spacing: 1-3/4"
  • Brand Burndy
  • Part # YAZ402NTCFX
  • Model # 25019239
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:
Package Quantity
Pack of 6 pcs

Options and Related Products

Conductor Size:
Conductor Size: 650 Kcmil
Stud Size:
Stud Size: 1/2"
Stud Hole Spacing:
Stud Hole Spacing: 1-3/4"

Burndy, YAZ402NTCFX, 25019239 Copper Compression Lug, 2 Hole, 650 Kcmil, 1/2" Stud, 1-3/4" Spacing

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
Color CodeBlack
Connector TypeTerminal
Die Index24
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
MaterialCopper
Physical Attribute - Number of Holes2
PlatedYes
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length fraction2-15/16 in
Dimension - B Length inch2.94 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm175 mm
Dimension - Length Overall inch6.89 in
Dimension - Length Side B inch6.89 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch1.35 in
Dimension - Pad Width inch1.98 in
Dimension - Strip Length inch3
Dimension - Z inch0.65 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size646.4 (1600/#24)
Conductor - Copper Flex G Size650
Conductor - Copper Flex H Size650
Conductor - Copper Flex I Size650
Conductor - Copper Flex K Size650
Conductor - Copper Flex M Size650
Conductor - Copper Str Size600 kcmil
Conductor - MaterialCopper
Certification - CSA ApprovedYes
Certification - UL RecognizedNo
Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Color CodeBlack
Connector TypeTerminal
Die Index24
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
MaterialCopper
Physical Attribute - Number of Holes2
PlatedYes
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length fraction2-15/16 in
Dimension - B Length inch2.94 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm175 mm
Dimension - Length Overall inch6.89 in
Dimension - Length Side B inch6.89 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch1.35 in
Dimension - Pad Width inch1.98 in
Dimension - Strip Length inch3
Dimension - Z inch0.65 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size646.4 (1600/#24)
Conductor - Copper Flex G Size650
Conductor - Copper Flex H Size650
Conductor - Copper Flex I Size650
Conductor - Copper Flex K Size650
Conductor - Copper Flex M Size650
Conductor - Copper Str Size600 kcmil
Conductor - MaterialCopper
Certification - CSA ApprovedYes
Certification - UL RecognizedNo
Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes
