Buy Burndy YAV300M10, 10 mm Copper Compression Terminal, 600 Kcmil, (Pack of 5 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 5 pcs

Options and Related Products

Stud Hole Size:: Stud Hole Size: 10 mm

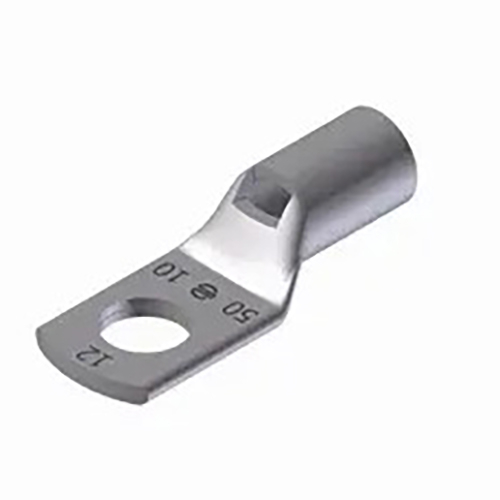

Burndy, YAV300M10, 10 mm Uninsulated Copper Compression Terminal, 600 Kcmil

Features:

The inspection window allows for visual verification that the wire has been fully inserted prior to crimping the lug
Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during installation
A standard length barrel is recommended for installation with limited space requirements
Electro-Tin Plated unless specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Compatible Standards: IEC61238-1, UL 486A-486B, CSA-C22.2 No. 65-03
Connectors are clearly marked with a stamping
Terminals and splices accommodating code wire: Accommodates Code Class B (Concentric, Compressed, Compact) and Class C wire

Made from electrolytic Copper tube and is electro-Tin Plated. Compatible with IEC61238-1.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Application	Metric Wire Termination
Connector Type	Terminal
Die Index	22
Finish Type	Tin-Plated
Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Trade Name	Hylug™
Type	Metric Terminals
Bolt Size	M10
Dimension - B Length inch	0.38 in
Dimension - L Length Overall mm	7 mm
Dimension - Length Overall inch	0.27 in
Dimension - Pad Width inch	0.74 in
Dimension - Strip Length inch	1.38 in
Dimension - Z inch	0.42 in
Physical Attribute - Tongue Angle	Straight
Thickness - Pad	0.27 in
Rating - KVA	35 kV
Voltage - Maximum	35000
Voltage Rating	35 kV
Conductor - Copper Str Size	300 mm2, 600 AWG
Certification - CSA Approved	No
Standards - RoHS Compliance Status	CM

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Application	Metric Wire Termination
Connector Type	Terminal
Die Index	22
Finish Type	Tin-Plated
Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Trade Name	Hylug™
Type	Metric Terminals
Bolt Size	M10
Dimension - B Length inch	0.38 in
Dimension - L Length Overall mm	7 mm
Dimension - Length Overall inch	0.27 in
Dimension - Pad Width inch	0.74 in
Dimension - Strip Length inch	1.38 in
Dimension - Z inch	0.42 in
Physical Attribute - Tongue Angle	Straight
Thickness - Pad	0.27 in
Rating - KVA	35 kV
Voltage - Maximum	35000
Voltage Rating	35 kV
Conductor - Copper Str Size	300 mm2, 600 AWG
Certification - CSA Approved	No
Standards - RoHS Compliance Status	CM

Note

Note: Please read description carefully. Do not base your order on the picture presented.
