Color Code | Brown |
Connector Type | Terminal |
Die Index | 10 |
Feature - Barrel Style | Chamfered |
Feature - Barrel Type | Standard |
Material | Copper |
Physical Attribute - Number of Holes | 1 |
Plated | Y |
Plating Type | Tin - Electro Plated |

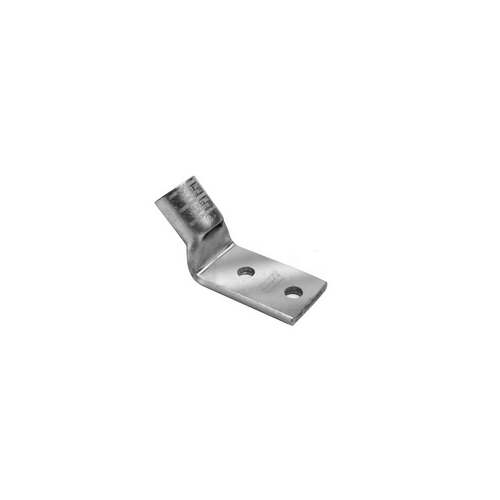

Trade Name | HYLUG™ |
Type | Standard Barrel, Tin Plated |
Dimension - B Length fraction | 5/8 in |
Dimension - B Length inch | 0.60 in |
Dimension - Bolt Hole Size inch | 0.33 in |
Dimension - Hole Size inch | 0.33 in |
Dimension - Hole Size mm | 8 mm |
Dimension - L Length Overall mm | 42 mm |
Dimension - Length Overall inch | 1.64 in |
Dimension - N inch | 0.34 in |
Dimension - Outside Diameter inch | 0.46 in |
Dimension - Pad Width inch | 0.55 in |
Dimension - Strip Length inch | 11/16 |
Dimension - Z inch | 0.52 in |
Physical Attribute - Tongue Angle | 45 Degree |
Rating - KVA | 35 kV |
Rating - Minimum Voltage | 600 |
Voltage - Maximum | 35000 |
Conductor - Copper DLO Size | 2 (150/#24) DLO |
Conductor - Copper DLO Size Range | 2 AWG |
Conductor - Copper Flex G Size | 2 AWG |
Conductor - Copper Flex G Size Range | 2 AWG |
Conductor - Copper Flex H Size | 2 AWG |
Conductor - Copper Flex H Size Range | 2 AWG |
Conductor - Copper Flex I Size | 2 AWG |
Conductor - Copper Flex I Size Range | 2 AWG |
Conductor - Copper Flex K Size | 2 AWG |
Conductor - Copper Flex K Size Range | 2 AWG |
Conductor - Copper Flex M Size | 2 AWG |
Conductor - Copper Str Navy Size Range | 60 (37) Navy |
Conductor - Copper Str Size | 2 AWG |
Conductor - Copper Str Size Range | 2 AWG |
Conductor - Material | Copper |
Certification - CSA Approved | Yes |
Certification - ETL | No |
Certification - UL Recognized | No |
Certification - cULus | No |
Industry Standard(s) | UL 486A-486B |
Standards - RoHS Compliance Status | CM |
UL Listed | Yes |
