Buy Burndy YAV26L2TC516FX, 518149 Copper Compression Lug, 2/0 AWG, (Pack of 10 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 10 pcs

Options and Related Products

Conductor Size:: Conductor Size: 2/0 AWG
Stud Size:: Stud Size: 5/16"
Stud Hole Spacing:: Stud Hole Spacing: 1"
Options:: Options: None

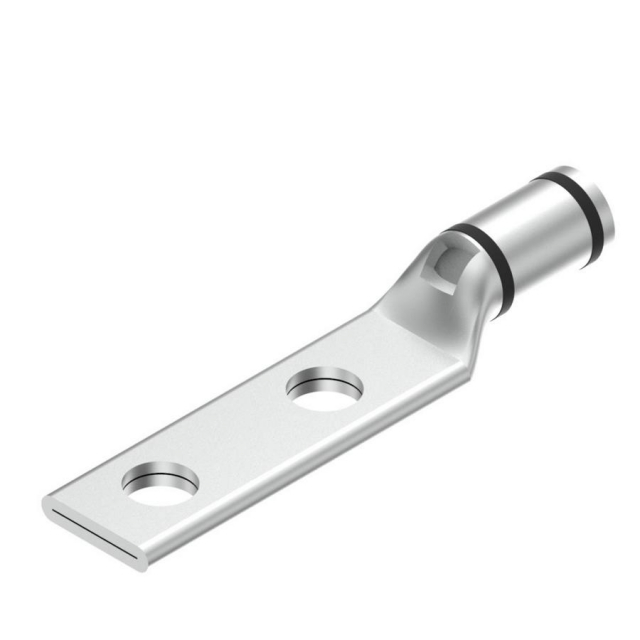

Burndy, YAV26L2TC516FX, 518149 Copper Compression Lug, 2 Hole, 2/0 AWG, 5/16" Stud, 1" Spacing

2/0 Flex G,H,I,K,M,DLO, 2/0 AWG CU, Two Hole, 5/16 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Black Color Code, 13 Die Index.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Color Code

Black

Connector Type

Terminal

Die Index

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin

Temperature Rating

194

Type

Standard Barrel, Tin Plated

Dimension - B Length fraction

13/16 in

Dimension - B Length inch

0.81 in

Dimension - Bolt Hole Size inch

0.41 in

Dimension - Bolt Size fraction

5/16

Dimension - Hole Size inch

0.41 in

Dimension - Hole Size mm

10 mm

Dimension - L Length Overall mm

79 mm

Dimension - Length Overall inch

3.12 in

Dimension - N inch

0.41 in

Dimension - Outside Diameter inch

0.63 in

Dimension - Pad Width inch

0.93 in

Dimension - Strip Length inch

13/16 in

Dimension - Z inch

0.43 in

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Rating - Minimum Voltage

600

Voltage - Maximum

35000

Conductor - Copper DLO Size

2/0 (375/#24) DLO

Conductor - Copper DLO Size Range

2/0 (375/#24) DLO

Conductor - Copper Flex G Size

2/0 AWG

Conductor - Copper Flex G Size Range

2/0 AWG

Conductor - Copper Flex H Size

2/0 AWG

Conductor - Copper Flex H Size Range

2/0 AWG

Conductor - Copper Flex I Size

2/0 AWG

Conductor - Copper Flex I Size Range

2/0 AWG

Conductor - Copper Flex K Size

2/0 AWG

Conductor - Copper Flex K Size Range

2/0 AWG

Conductor - Copper Flex M Size

2/0 AWG

Conductor - Copper Flex M Size Range

2/0 AWG

Conductor - Copper Solid Size

2/0 AWG

Conductor - Copper Solid Size Range

2/0 AWG

Conductor - Copper Str Navy Size

125 Navy

Conductor - Copper Str Navy Size Range

125 Navy

Conductor - Copper Str Size

2/0 AWG

Conductor - Copper Str Size Range

2/0 AWG

Conductor - CopperWeld Str Size

2/0 WELD

Conductor - CopperWeld Str Size Range

2/0 WELD

Conductor - Material

Copper

Certification - CSA Approved

Yes

Certification - UL Recognized

Certification - cULus

Standards - RoHS Compliance Status

UL Listed

Yes

Notes
