Buy Burndy YAV25L2TC516FX, 518219 Copper Compression Lug, 1/0 AWG, (Pack of 100 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 100 pcs

Options and Related Products

Conductor Size:: Conductor Size: 1/0 AWG
Stud Size:: Stud Size: 5/16"
Stud Hole Spacing:: Stud Hole Spacing: 1"
Options:: Options: None

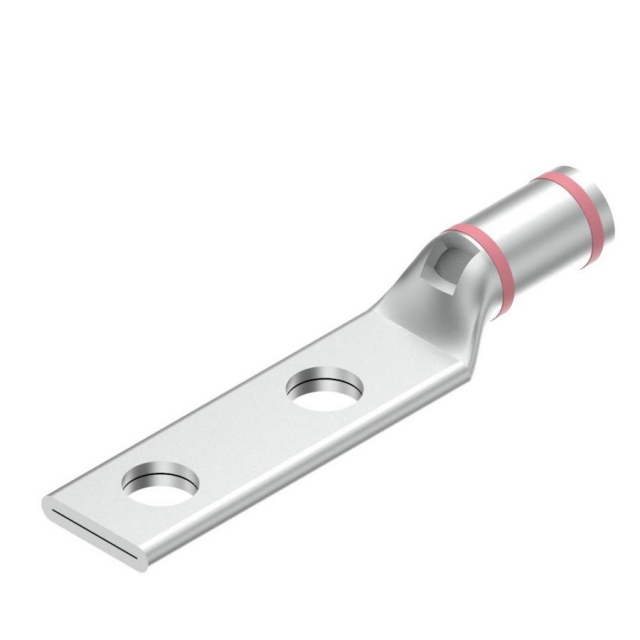

Burndy, YAV25L2TC516FX, 518219 Copper Compression Lug, 2 Hole, 1/0 AWG, 5/16" Stud, 1" Spacing

1/0 Flex G,H,I,K,M,DLO, 1/0 AWG (B/C) CU, Two Hole, 5/16 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pink Color Code, 12 or 348 Die Index.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

General

Color Code

Pink

Connector Type

Terminal

Die Index

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin

Temperature Rating

194

Dimensions

Dimension - B Length fraction

11/16 in

Dimension - B Length inch

0.69 in

Dimension - Bolt Hole Size inch

0.33 in

Dimension - Hole Size inch

0.33 in

Dimension - Hole Size mm

8 mm

Dimension - L Length Overall mm

72 mm

Dimension - Length Overall inch

2.82 in

Dimension - N inch

0.34 in

Dimension - Outside Diameter inch

0.56 in

Dimension - Pad Width inch

0.83 in

Dimension - Strip Length inch

11/16

Dimension - Z inch

0.36 in

Physical Attribute - Tongue Angle

Straight

Current Related

Rating - KVA

35 kV

Rating - Minimum Voltage

600

Voltage - Maximum

35000

Conductor Related

Conductor - Copper DLO Size

1/0 (275/#24) DLO

Conductor - Copper DLO Size Range

1/0 (275/#24) DLO

Conductor - Copper Flex G Size

1/0 AWG

Conductor - Copper Flex G Size Range

1/0 AWG

Conductor - Copper Flex H Size

1/0 AWG

Conductor - Copper Flex H Size Range

1/0 AWG

Conductor - Copper Flex I Size

1/0 AWG

Conductor - Copper Flex I Size Range

1/0 AWG

Conductor - Copper Flex K Size

1/0 AWG

Conductor - Copper Flex K Size Range

1/0 AWG

Conductor - Copper Flex M Size

1/0 AWG

Conductor - Copper Flex M Size Range

1/0 AWG

Conductor - Copper Str Navy Size

100 Navy

Conductor - Copper Str Navy Size Range

100 Navy

Conductor - Copper Str Size

1/0

Conductor - Copper Str Size Range

1/0

Conductor - CopperWeld Str Size

1/0 WELD

Conductor - CopperWeld Str Size Range

1/0 WELD

Conductor - Material

Copper

Certifications and Compliance

Certification - CSA Approved

Yes

Certification - UL Recognized

Certification - cULus

Standards - RoHS Compliance Status

UL Listed

Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
