Buy Burndy YAV1CL2TC14E2FX, 518449 Copper Compression Lug, #1 AWG, (Pack of 25 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 25 pcs

Options and Related Products

Conductor Size:: Conductor Size: #1 AWG
Stud Size:: Stud Size: 1/4"
Stud Hole Spacing:: Stud Hole Spacing: 3/4"
Options:: Options: None

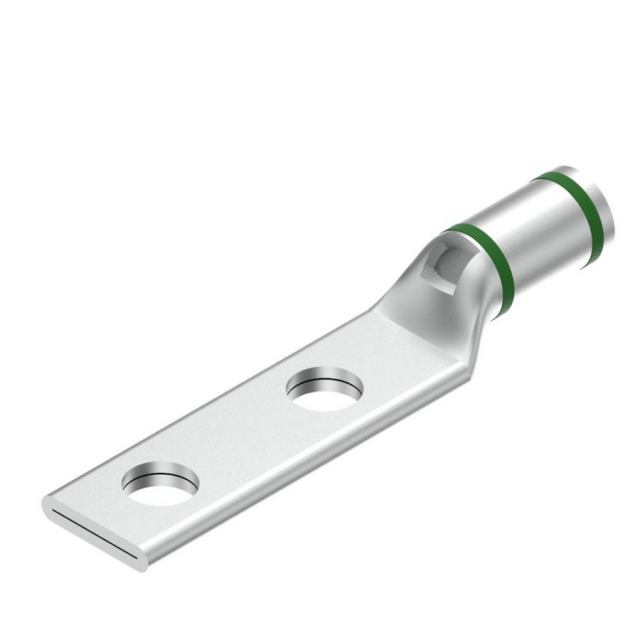

Burndy, YAV1CL2TC14E2FX, 518449 Copper Compression Lug, 2 Hole, #1 AWG, 1/4" Stud, 3/4" Spacing

1 Flex G,H,I,K,M,DLO, 1 AWG (B/C) CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Green Color Code, 11 or 375 Die Index.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Color Code

Green

Connector Type

Terminal

Die Index

11,375

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin

Temperature Rating

194

Type

Standard Barrel, Tin Plated

Dimension - Bolt Hole Size inch

0.27 in

Dimension - Bolt Size fraction

1/4

Dimension - Hole Size inch

0.27 in

Dimension - Hole Size mm

7 mm

Dimension - Length Overall inch

2.41 in

Dimension - Outside Diameter inch

0.51 in

Dimension - Pad Width inch

0.75 in

Dimension - Strip Length inch

11/16

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Voltage - Maximum

35000

Voltage Rating

35 kV

Conductor - Copper Str Navy Size

75 (37) Navy

Conductor - Copper Str Navy Size Range

75 (37) Navy

Conductor - Copper Str Size

1 AWG

Conductor - Copper Str Size Range

1 AWG

Conductor - CopperWeld Str Size

1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG

Conductor - CopperWeld Str Size Range

1 F AWG-1 N AWG

Conductor - Material

Copper

Certification - CSA Approved

Yes

Certification - ETL

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL 486A-486B

Standards - RoHS Compliance Status

UL Listed

Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Color Code

Green

Connector Type

Terminal

Die Index

11,375

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin

Temperature Rating

194

Type

Standard Barrel, Tin Plated

Dimension - Bolt Hole Size inch

0.27 in

Dimension - Bolt Size fraction

1/4

Dimension - Hole Size inch

0.27 in

Dimension - Hole Size mm

7 mm

Dimension - Length Overall inch

2.41 in

Dimension - Outside Diameter inch

0.51 in

Dimension - Pad Width inch

0.75 in

Dimension - Strip Length inch

11/16

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Voltage - Maximum

35000

Voltage Rating

35 kV

Conductor - Copper Str Navy Size

75 (37) Navy

Conductor - Copper Str Navy Size Range

75 (37) Navy

Conductor - Copper Str Size

1 AWG

Conductor - Copper Str Size Range

1 AWG

Conductor - CopperWeld Str Size

1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG

Conductor - CopperWeld Str Size Range

1 F AWG-1 N AWG

Conductor - Material

Copper

Certification - CSA Approved

Yes

Certification - ETL

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL 486A-486B

Standards - RoHS Compliance Status

UL Listed

Yes
