Buy Burndy YAEV25H2, 002601 Ring-Tongue Terminal, 1/0 AWG, 5/16" Stud, (Pack of 100 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 100 pcs

Options and Related Products

Conductor Size:: Conductor Size: 1/0 AWG
Stud Size:: Stud Size: 5/16"

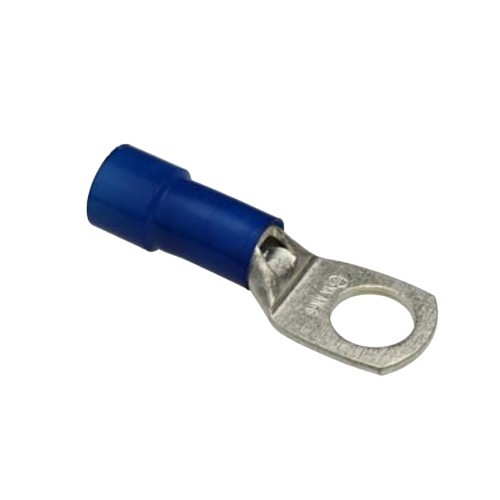

Burndy, YAEV25H2, 002601 Ring-Tongue Terminal for Expanded Insulation, 1/0 AWG, 5/16" Stud

Designed to accommodate larger conductor insulation diameters. Made of one piece tin plated pure electrolytic seamless copper tubing for maximum conductivity and ductility. Colorcoded insulating sleeves are locked into position. Inspection hole permits visual check of wire insertion.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Color Code

Blue

Connector Type

Terminal

Feature - Barrel Style

Belled

Feature - Barrel Type

Standard

Insulation

Insulation Type

Nylon

Item Type

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Ring

Plated

Plating Type

Tin

Trade Name

INSULUG™

Dimension - Bolt Hole Size inch

0.52 in

Dimension - D inch

0.90 in

Dimension - Length Overall inch

2.88 in

Dimension - N inch

0.44 in

Dimension - Pad Width inch

0.88 in

Dimension - Strip Length inch

11/16 in

Dimension - Stud Size inch

1/2

Dimension - Z inch

0.46 in

Physical Attribute - Tongue Angle

Straight

Voltage - Maximum

600 V

Conductor - Copper Str Aircraft Size

AN 1/0

Conductor - Copper Str Size

1/0 AWG

Conductor Type

CU C Solid-Size
CU C Str-Size

Certification - CSA Approved

Certification - UL Recognized

Certification - cULus

Standards - RoHS Compliance Status

UL Listed

Product Details

Color Code

Blue

Connector Type

Terminal

Feature - Barrel Style

Belled

Feature - Barrel Type

Standard

Insulation

Insulation Type

Nylon

Item Type

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Ring

Plated

Plating Type

Tin

Trade Name

INSULUG™

Dimension - Bolt Hole Size inch

0.52 in

Dimension - D inch

0.90 in

Dimension - Length Overall inch

2.88 in

Dimension - N inch

0.44 in

Dimension - Pad Width inch

0.88 in

Dimension - Strip Length inch

11/16 in

Dimension - Stud Size inch

1/2

Dimension - Z inch

0.46 in

Physical Attribute - Tongue Angle

Straight

Voltage - Maximum

600 V

Conductor - Copper Str Aircraft Size

AN 1/0

Conductor - Copper Str Size

1/0 AWG

Conductor Type

CU C Solid-Size
CU C Str-Size

Certification - CSA Approved

Certification - UL Recognized

Certification - cULus

Standards - RoHS Compliance Status

UL Listed

Note

Note: Please read description carefully. Do not base your order on the picture presented.
