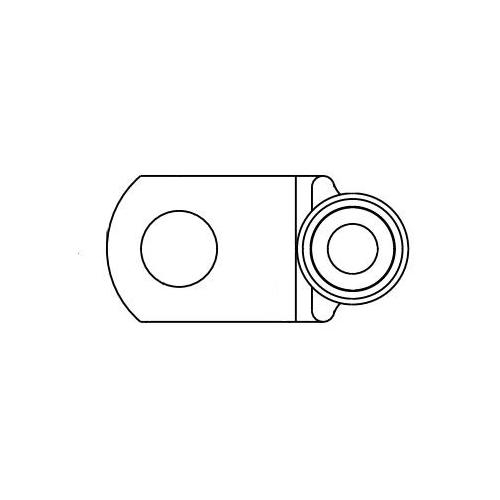

Burndy YAEV14R 651134 Cu Ring Tongue Terminal, #18 - #14 AWG, (Pack of 1000 pcs)

Burndy, YAEV14R, Copper Ring Tongue Terminal, #18 - #14 AWG, #8 - #10 Stud, 90 Degree

The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105°C and meets MIL-T-7928 requirements.

Features

• Provides maximum reliability and electrical capacity plus an extra strong terminal tongue.
• Electro-tin plated.
• Provides long-lasting corrosion resistance.
• Nylon insulation is locked in place.
• Insulation will not move or twist off
• 300 volt nylon insulation.
• High dielectric strength and stability in demanding oily environmental conditions.
• Provides quick, easy wire size connector selection.
