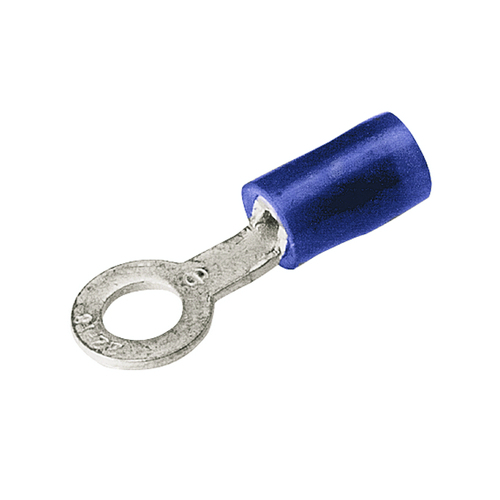

Buy Burndy YAES14N10SV, 10089797 Nylon Insulated Cu Ring Tongue Terminal, (Pack of 1000 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Burndy, YAES14N10SV, 10089797 Nylon Insulated Cu Ring Tongue Terminal, Wire Range 16-14 AWG, Stud Size 3/8", Silver Plated, Strip Length 7/32".

Unit of Measure	Pack of 1000 pcs

Unit of Measure

Pack of 1000 pcs

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color Code	Blue
Connector Type	Terminal
Insulation	Y
Insulation Type	Nylon
Material	Copper
Military Specification	MS25036
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Y
Plating Type	Silver
Trade Name	INSULUG
Dimension - G inch	0.39 in
Dimension - Length Overall inch	1.17 in
Dimension - Outside Diameter inch	0.28 in
Dimension - Strip Length inch	7/32 in
Dimension - Stud Size inch	3/8 in
Dimension - Width inch	0.53 in
Voltage - Maximum	600 V
Conductor - Copper Str Size	16 AWG;14 AWG
Conductor - Copper Str Size Range	16 AWG-14 AWG
Conductor Type	CU C Str-Size

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Color Code	Blue
Connector Type	Terminal
Insulation	Y
Insulation Type	Nylon
Material	Copper
Military Specification	MS25036
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Y
Plating Type	Silver
Trade Name	INSULUG
Dimension - G inch	0.39 in
Dimension - Length Overall inch	1.17 in
Dimension - Outside Diameter inch	0.28 in
Dimension - Strip Length inch	7/32 in
Dimension - Stud Size inch	3/8 in
Dimension - Width inch	0.53 in
Voltage - Maximum	600 V
Conductor - Copper Str Size	16 AWG;14 AWG
Conductor - Copper Str Size Range	16 AWG-14 AWG
Conductor Type	CU C Str-Size

Note: Please read description carefully. Do not base your order on the picture presented.
