Buy Burndy YAEBAS2CPTN, #2 AWG Battery Post Terminal, 2.3" x 1.02", (Pack of 10 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

The actual item's colors maybe different from what is shown on the product picture.

Package Quantity: Pack of 10 pcs

Options and Related Products

Size:: Size: 2.3" x 1.02"
Wire Range:: Wire Range: #2

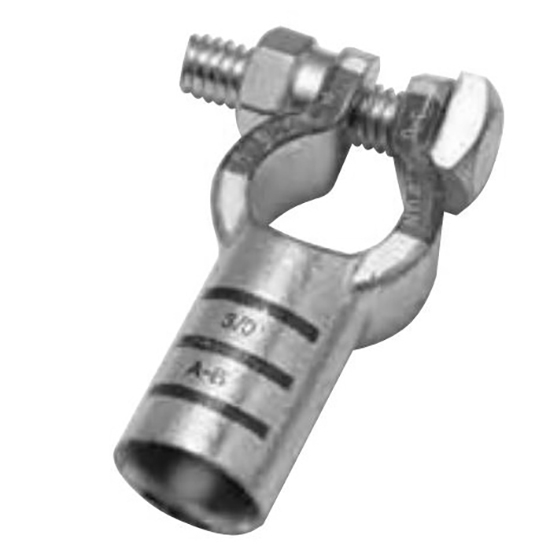

Burndy, YAEBAS2CPTN, #2 Straight Style Battery Post Terminal, 2.3" x 1.02"

Features:

Color-coded for easy identification
Chamfered end
Made of Copper alloy, Tin Plated for corrosion resistance and RoHS compliance
Supplied standard with Stainless Steel hardware installed
Clamp color-coded by polarity; red is positive, black is negative
Not UL Listed but tested and met UL486A-486B pullout requirements

Burndy straight-style battery post Terminals are made from pure Copper alloy and Tin Plated to prevent corrosion. They adhere to SAE, JIS, and DIN stud standards. Typical applications are automotive, marine, transportation, petrochemical, and OEM markets.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Application	Battery Post Terminal
Color Code	Brown
Connector Type	Battery Straight Post
Die Index	10
Finish Type	Tin-Plated
Installation Torque Recommended in-lb	72 LBS/in
Material	Copper
Plating Type	Tin Plated
Temperature Rating	194
Trade Name	Hylug™
Type	OEM Terminals
Dimension - L Length Overall mm	59 mm
Dimension - Length Overall inch	2.30 in
Dimension - Strip Length inch	1-3/32 in
Physical Attribute - Tongue Angle	Straight
Rating - KVA	35 kV
Voltage - Maximum	35000
Voltage Rating	35 kV
Conductor - Copper Str Size Range	2 AWG
Conductor Size	2 AWG
Certification - CSA Approved	No
Certification - ETL	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Application	Battery Post Terminal
Color Code	Brown
Connector Type	Battery Straight Post
Die Index	10
Finish Type	Tin-Plated
Installation Torque Recommended in-lb	72 LBS/in
Material	Copper
Plating Type	Tin Plated
Temperature Rating	194
Trade Name	Hylug™
Type	OEM Terminals
Dimension - L Length Overall mm	59 mm
Dimension - Length Overall inch	2.30 in
Dimension - Strip Length inch	1-3/32 in
Physical Attribute - Tongue Angle	Straight
Rating - KVA	35 kV
Voltage - Maximum	35000
Voltage Rating	35 kV
Conductor - Copper Str Size Range	2 AWG
Conductor Size	2 AWG
Certification - CSA Approved	No
Certification - ETL	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Note

Note: Please read description carefully. Do not base your order on the picture presented.
