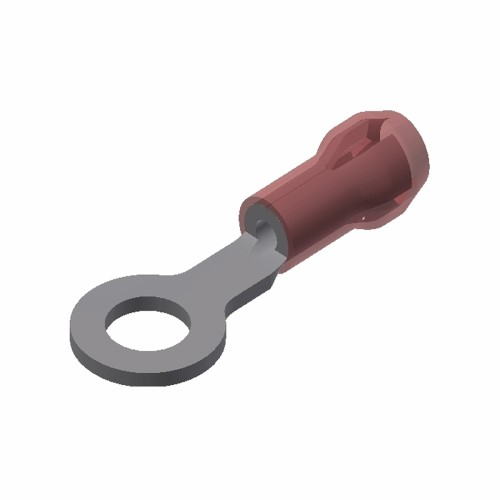

Buy Burndy YAE18NBK, 643439 Cu Terminal Ring Tongue Nylon Insulated, (Pack of 1000 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Cu Terminal, Ring Tongue, 22-16 AWG, AN22-16, #8-#10 stud, Nylon Insulated, Tin Plated, Multi-Finger Insulation Grip, Black supporting bushing.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color Code	Red
Connector Type	Terminal
Insulation	Y
Insulation Type	Nylon
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Y
Plating Type	Tin
Trade Name	INSULUG
UPC	781810030875
UPC 12 Digit	7818100308755
Dimension - Hole Size fraction	1/5
Dimension - Hole Size inch	0.20 in
Dimension - L Length Overall mm	23 mm
Dimension - Length Overall inch	0.92 in
Dimension - N inch	0.16 in
Dimension - Pad Width inch	0.31 in
Dimension - Strip Length inch	3/16 in
Dimension - Stud Size inch	#8;#10
Dimension - Width inch	0.06 in
Dimension - Z inch	0.28 in
Voltage - Maximum	600 V
Conductor - Copper Str Aircraft Size Range	AN22 - AN16
Conductor - Copper Str Size Range	22 AWG - 16 AWG
Conductor Type	CU C Str-Size

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Color Code	Red
Connector Type	Terminal
Insulation	Y
Insulation Type	Nylon
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Ring
Plated	Y
Plating Type	Tin
Trade Name	INSULUG
UPC	781810030875
UPC 12 Digit	7818100308755
Dimension - Hole Size fraction	1/5
Dimension - Hole Size inch	0.20 in
Dimension - L Length Overall mm	23 mm
Dimension - Length Overall inch	0.92 in
Dimension - N inch	0.16 in
Dimension - Pad Width inch	0.31 in
Dimension - Strip Length inch	3/16 in
Dimension - Stud Size inch	#8;#10
Dimension - Width inch	0.06 in
Dimension - Z inch	0.28 in
Voltage - Maximum	600 V
Conductor - Copper Str Aircraft Size Range	AN22 - AN16
Conductor - Copper Str Size Range	22 AWG - 16 AWG
Conductor Type	CU C Str-Size

Note: Please read description carefully. Do not base your order on the picture presented.
