Buy Burndy YAE14N78FM, 10041653 Terminal - Nylon Insulated Multi-Finger, (Pack of 2000 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

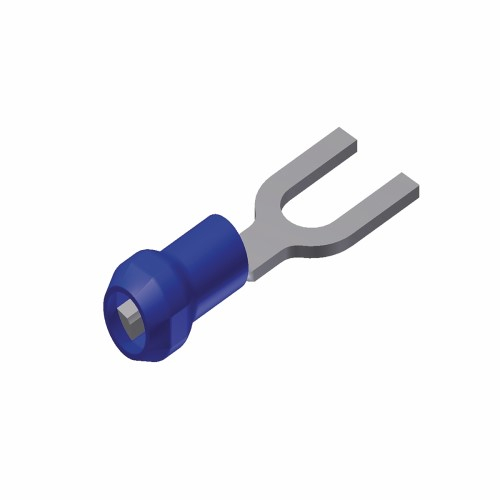

Terminal - Nylon Insulated, Multi-Finger Insulation Grip, Fork Tongue, 16 AWG - 14 AWG, #8-#10, Electro Tin Plated, Reel Packaging.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	Power Connector
Color Code	Blue
Connector Type	Fork Terminal
Feature - Barrel Style	Shrouded
Feature - Barrel Type	Standard
Insulation	Y
Insulation Type	Nylon
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Fork Terminal
Plated	Y
Plating Type	Electro Tin
Temperature Rating	105° C
Trade Name	INSULUG
UPC	781810367537
UPC 12 Digit	7818103675377
Dimension - B Length fraction	4/25 in
Dimension - B Length inch	0.16 in
Dimension - Hole Size fraction	1/5
Dimension - Hole Size inch	0.20 in
Dimension - Length Overall inch	1.01 in
Dimension - N inch	0.21 in
Dimension - Pad Width inch	0.35 in
Dimension - Strip Length inch	3/16 in
Dimension - Stud Size inch	#8 - #10
Dimension - Z inch	0.298 in
Voltage - Maximum	600 V
Conductor - Copper Str Aircraft Size Range	AN16 - AN14
Conductor - Copper Str Size Range	16 AWG - 14 AWG
Conductor Type	CU C Str-Size

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Application	Power Connector
Color Code	Blue
Connector Type	Fork Terminal
Feature - Barrel Style	Shrouded
Feature - Barrel Type	Standard
Insulation	Y
Insulation Type	Nylon
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Tongue Type	Fork Terminal
Plated	Y
Plating Type	Electro Tin
Temperature Rating	105° C
Trade Name	INSULUG
UPC	781810367537
UPC 12 Digit	7818103675377
Dimension - B Length fraction	4/25 in
Dimension - B Length inch	0.16 in
Dimension - Hole Size fraction	1/5
Dimension - Hole Size inch	0.20 in
Dimension - Length Overall inch	1.01 in
Dimension - N inch	0.21 in
Dimension - Pad Width inch	0.35 in
Dimension - Strip Length inch	3/16 in
Dimension - Stud Size inch	#8 - #10
Dimension - Z inch	0.298 in
Voltage - Maximum	600 V
Conductor - Copper Str Aircraft Size Range	AN16 - AN14
Conductor - Copper Str Size Range	16 AWG - 14 AWG
Conductor Type	CU C Str-Size

Note: Please read description carefully. Do not base your order on the picture presented.
